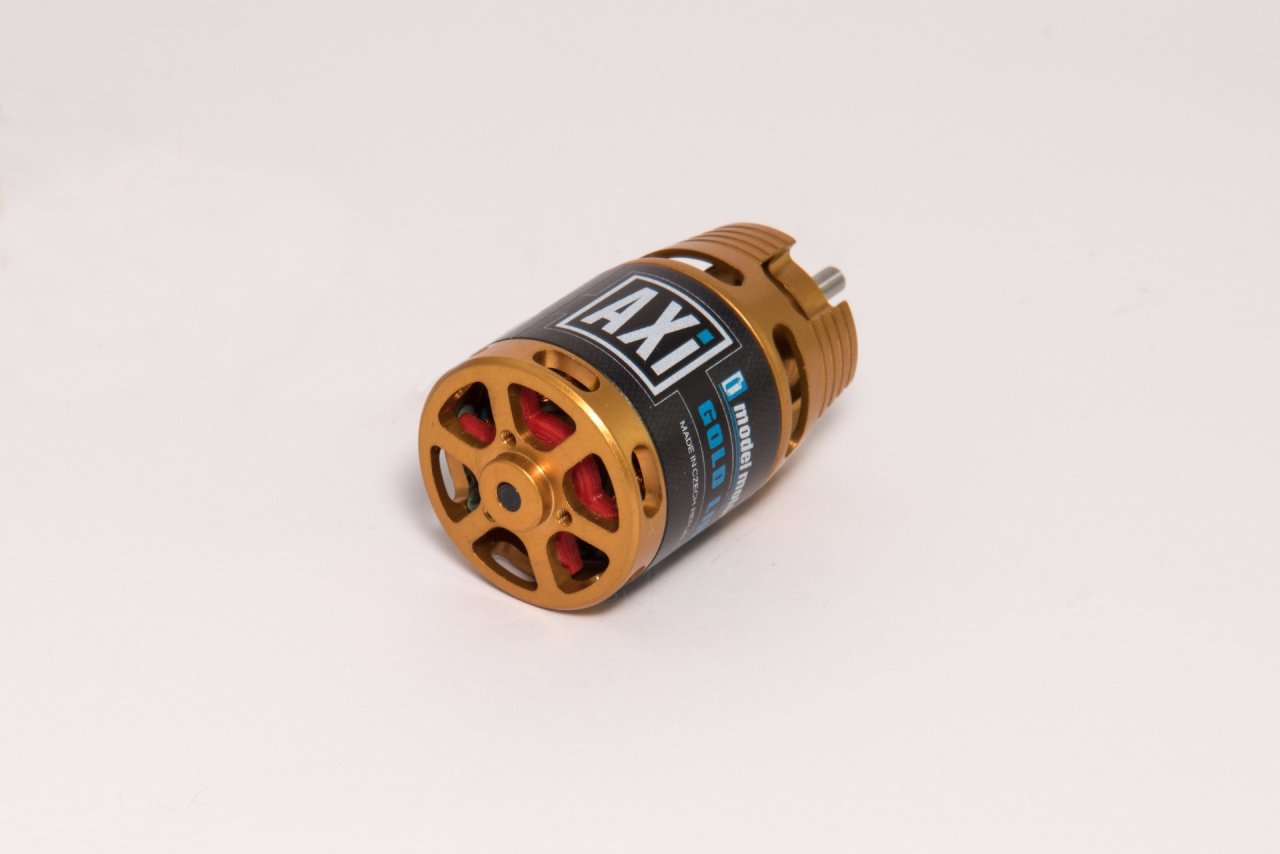

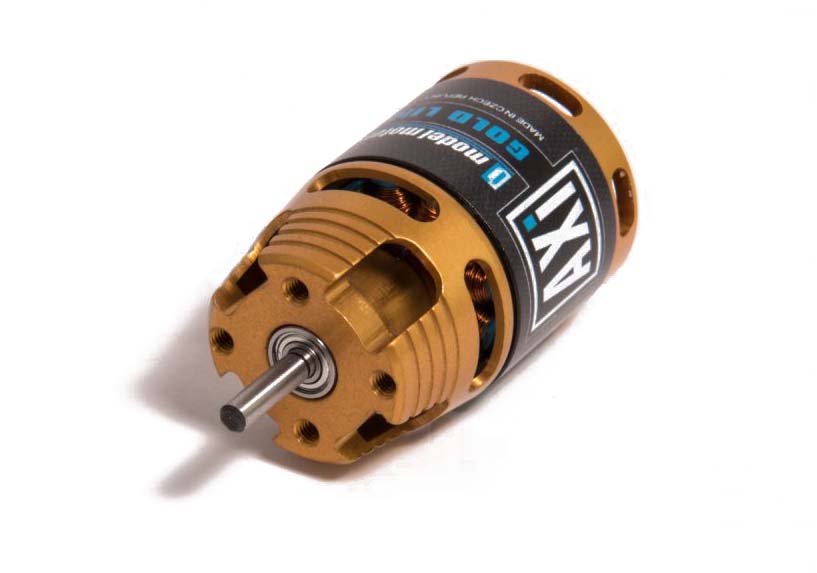

Axi 2212/20 V2 Long 59g 1150 RPM/V

Product Code: AXI2212-20V2L

(2 reviews)

Price: $52.85

Description

You will be surprised by the very high power delivered by these small and very robust, but light weight (59g with power cables) brushless motors with rotating case suitable for all models of Slow and Park Fly size weight up to 650 g. The hardened steel 3,17mm diameter shaft is supported by two large ball bearings which ensure very good mechanical reliability with front or radial mounting. As a result of using the latest ferromagnetic materials the AXI 22xx/xx V2 motors offer extremely high efficiency and high load capability for their weight.

No. of cells 2-3s Li-Poly
Kv 1150 RPM/V
Max. efficiency 84%
Max. efficiency current 6 - 12 A (>75%)
No load current 0,7 A
Current capacity 18 A/60 s
Internal Resistance 78 mohm

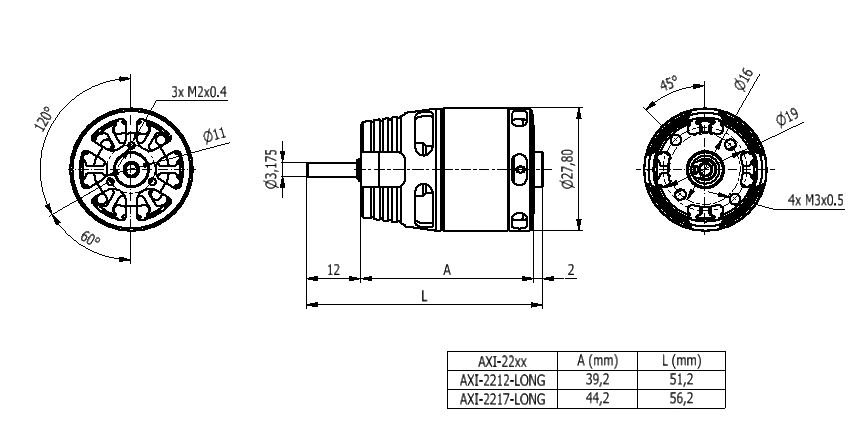

Dimensions (Ø x L) 27,7x39,4 mm
Shaft diameter 3,17 mm
Weight 59,5 g
Max. Power 180 W

Reviews 2

13/09/2021 22:28

Review by: Richard

Quality Motors

I’ve used AXXI motors for some years now and have found them to do what is asked of them without fault . Unfortunately this time I ordered a 2212/ 20v2 Long and received a 2220/16 v2 Long . I quess that’s too many numbers in a row for some . No worries I’ll use it on another project .

HyperFlight Reply:
We offered to send the correct motor but the customer was happy to keep the motor.

12/09/2021 21:54

Review by: Richard

Quality Motors
