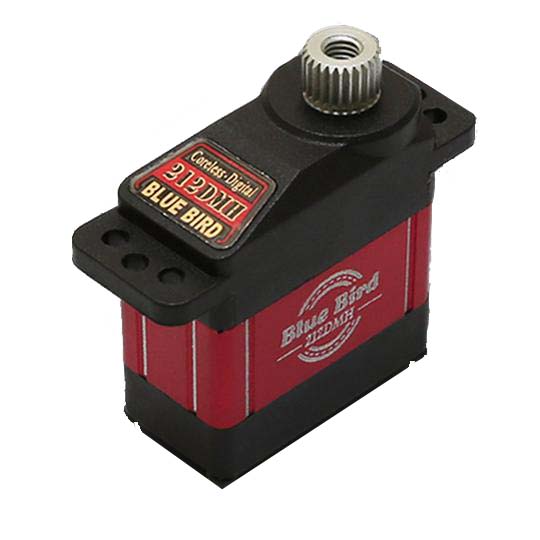

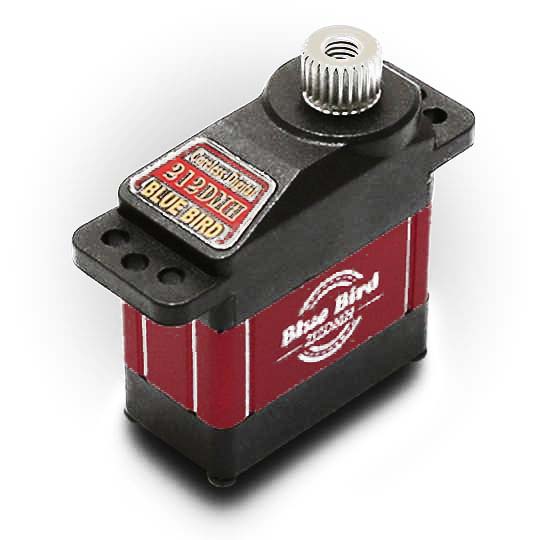

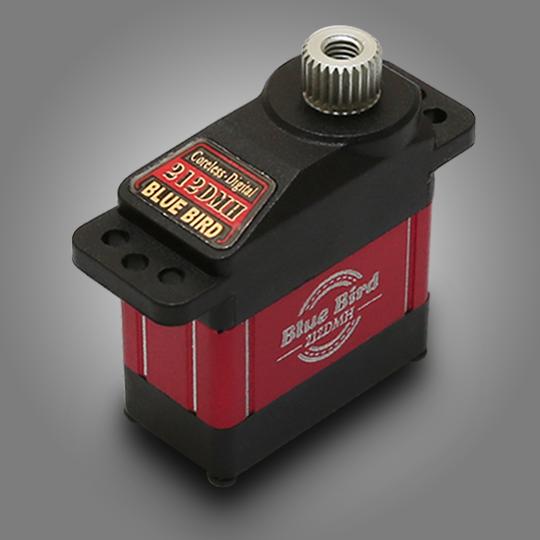

Blue Bird BMS-212DMH Servo - 1.4Kg.cm 0.05s 15.5g 12mm

The Blue Bird BMS-212DMH is a high speed servo for medium sized RC planes and helicopters. its high speed makes it particularly suitable for heli tail rotors and rudder and elevator on 3D aerobats.

With its good performance and high precsion it makes an excellent servo for many sports models weighing up to 2Kg

Blue Bird BMS-212DMH Specifications

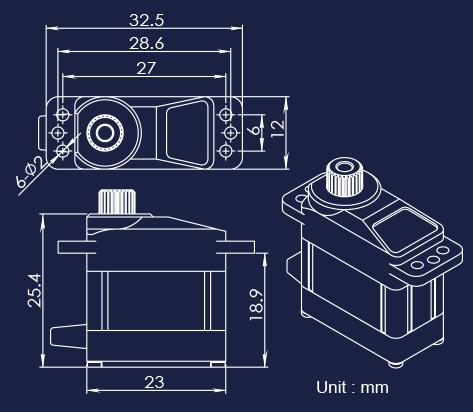

Body dimensions	23.0 mm wide x 12.0 mm thick x 25.0 mm high	0.91" wide x 0.47" thick x 0.98" high
Max dimensions	32.5 mm wide x 12.0 mm thick x 30.0 mm high	1.28" wide x 0.47" thick x 1.18" high
Stall torque (4.8V)	1.1 Kg.cm	15 oz.in
Stall torque (5.5V)	1.25 Kg.cm	17 oz.in
Stall torque (6V)	1.4 Kg.cm	19 oz.in
Weight	15.5 g	0.55 oz
Lead length	16 cm	6.3 in
Operating speed (4.8V)	0.07 sec/60°
Operating speed (5.5V)	0.06 sec/60°
Operating speed (6V)	0.05 sec/60°
Operating voltage	4.5V to 6V
Operating temperature	0 to 40 °C
Bearings	2 ball bearings
Gear material	Metal alloy
Case material	Nylon and anodised aluminium
Motor type	Coreless DC motor
Working frequency	250 Hz
Dead band/resolution	2 µs
Pulse width for ± 60º	(L) 900 µs - (0°) 1520 µs- (R) 2100 µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer
Supplied accessories	2 plastic output arms, 1 arm retaining screw, 4 mounting screws, Blue Bird sticker
