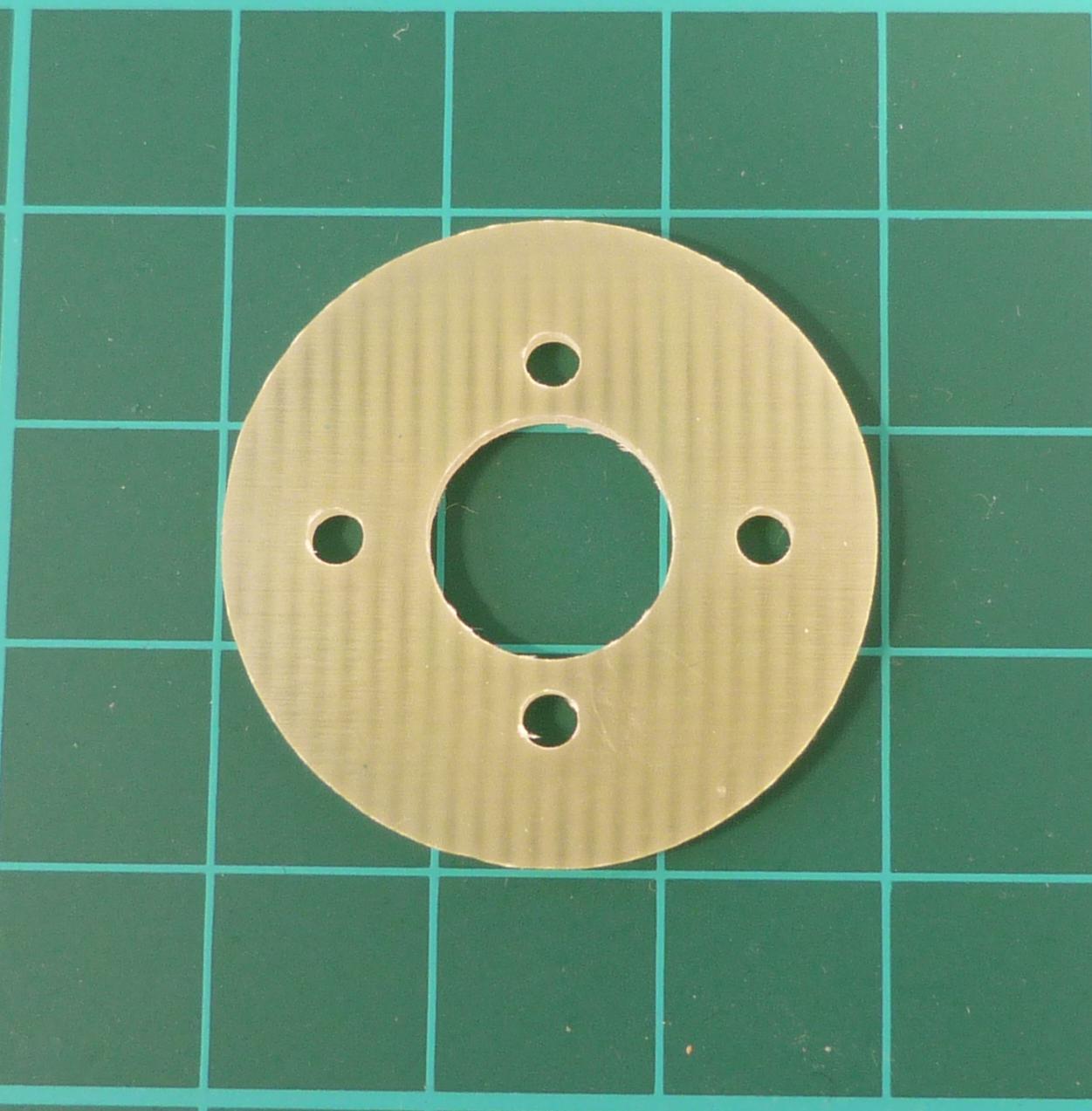

Glassfibre 29mm Firewall for Many Motors

A good quality 29 mm diameter CNC cut firwall made from strong 2 mm thick glass epoxy sheet, ready cut for Speed 400/ Speed 480/ Speed 600/ Universal type gearboxes/motors.

Available in various diameters, though it is easy to reduce the size if necessary. To attach this firwall to carbon/Kevlar/glass fuselages we recommend JB Weld as it does not soften with temperature.

29 mm Firewall for Speed 400/ Speed 480/ Speed 600/ Universal Gearboxes
Diameter	29 mm	1.14"
Centre hole	11 mm	0.43"
Material	2 mm glass epoxy sheet	0.08" epoxy glass sheet
Gearbox holes	3 mm diameter	0.12" diameter
Gearbox hole pattern	2 holes on 16 mm plus 2 holes on 19 mm diameter circle
