VM F3J/F5J Tailplane Mount

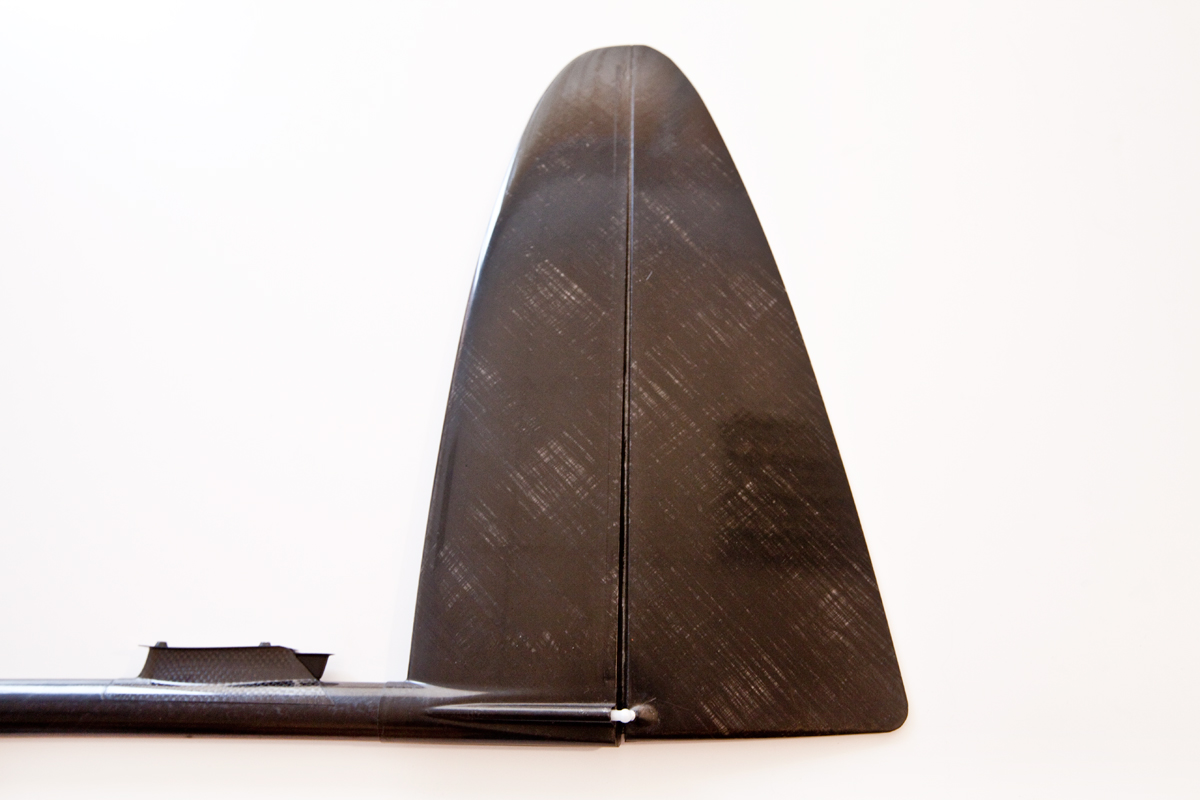

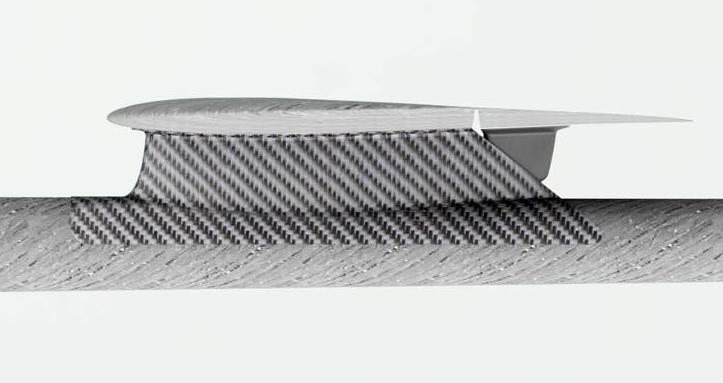

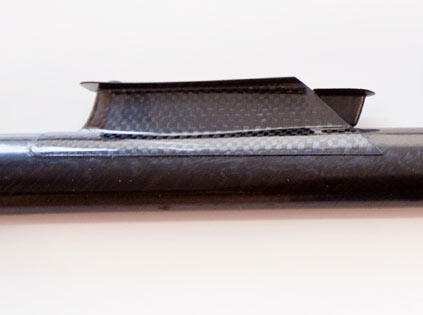

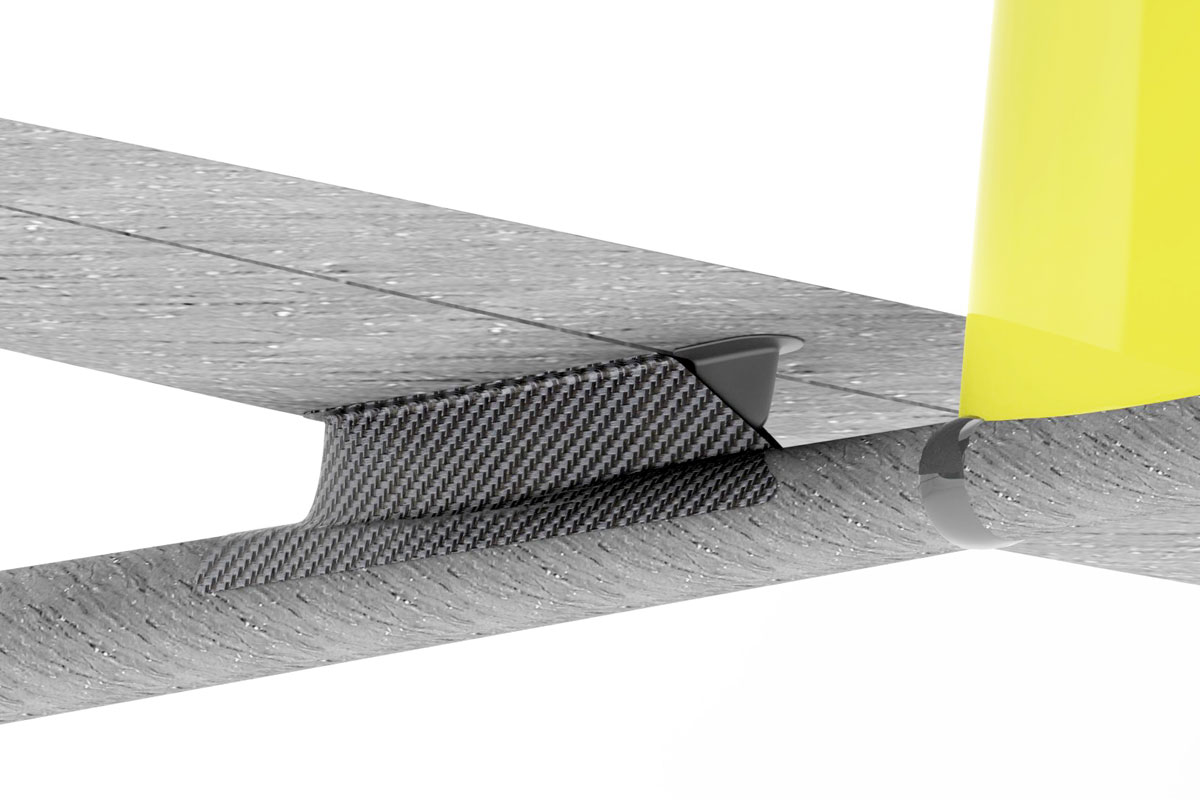

This beautiful carbon moulding is used to securely mount the tailplane (also called horizontal stabiliser or hoz stab) on the Vladimir's Models Supra Expert and Maxa Pro pure glider and electric gliders. The mount (also called pylon) has a nice aifoil shape and is faired into a conic section for bonding to the glider's tailboom. The rear is open to act as a fairing and actuation slot for the elevator horn. Although desgned for the Maxa it will work with many 3 m - 4 m span models.

The mount has two stab mounting holes 50 mm apart that are threaded for M3 metric screws. This product consists of the mount only, it doesn't include the tailplane mounting screws or the elevator horn.

F3J/F5J Tailplane Mount Specifications
Overall length	100 mm
Av tailboom width	20 - 24 mm
Stab mount platform width	20 mm
Distance between stab mounting holes	50 mm
Mounting hole size	M3
Weight	2.9 g
