30mm HyperSpinner for 3mm shafts

Product Code: HYPERSPIN-30-3

Price: $16.58

Description

Very limited supply. Sales strictly limited to one only per order.

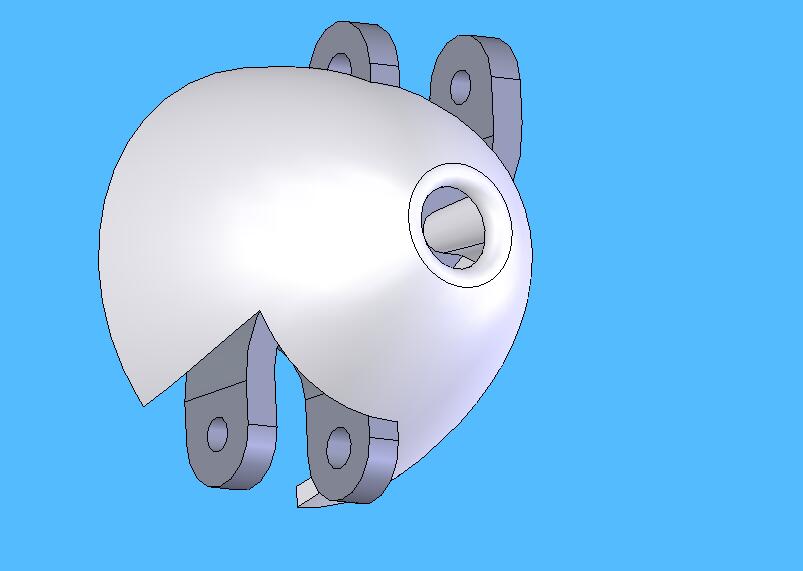

Vladimir's Models HyperSpinner for 8mm root folding propeller blades, suitable for all models requiring a 30mm spinner. Comes with a machined alloy yoke (centre piece) and polished steel hinge pins for mounting the prop blades. Two grub screws are used to securely attach the assembly to the motor shaft.

The accurately CNC machined aluminium yoke ensures smooth operation and good power handling.
The cranked yoke design allows the prop blades to fold closer to the fuselage than with a conventional design, reducing drag.
Supplied with a tough black plastic spinner cone that absorbs hard landings without cracking.
Other colour spinner cones available as spare parts.
The spinner front hole reportedly allows "turbo" motor cooling, if suitable holes are drilled in the firewall.
Supplied with an Allen key for easy fitting.

Hyper Spinner Specification
Diameter	30 mm
Motor shaft	3 mm
Prop twist	0°
Distance across hinge pins	27 mm
Prop hinge pin diameter	3 mm
Prop blade root width	8 mm
Weight	9 g
Max power	600 W

Note this spinner comes complete will all screws and a black spinner cone. No other items are required apart from the prop blades.

If out of stock you can make one from a 32mm spinner and fitting a 30mm spinner cone.

Reviews 13

13/05/2019 12:40

Review by: Werner

Perfekt Spinner, thank you

18/03/2019 13:08

Review by: Anonymous

Perfect

27/05/2018 18:58

Review by: Colin

Nice spinner but the cone has a problem

The Hyperspinner is nicely machined and easy to assemble.
Unfortunately, the cone interfered with the root of my blades (aero-naut CAM 9x4in.) and had to be relieved to allow the prop to fold.

HyperFlight Comment
That is nt really a problem. Trimming the cone to match the blade root is easy.

26/11/2017 06:26

Review by: Rob

Excellent product

Great spinner......have used a few different sizes on different models and are of excellent quality.....one of the finest spinners on the market!

07/01/2017 16:51

Review by: Ed in AZ

Smartly crafted

I couldn't find a suitable 30mm spinner for a Pulsar 2m Pro in the USA. Then I checked the HF site. Important to me, this spinner uses set (grub) screws-not a collet, to retain the yoke on the motor shaft. I have had great trouble with collet based yoke/spinners holding tight over time. And this spinner is designed such the prop' hinge pins are captured by the nose cone once it is screwed to the yoke. Clever and lighter than machine screws with nuts. The machining of the yoke is nicely executed as well. No burrs. I recommend this spinner!

07/01/2017 11:50

Review by: Sascha

Fits perfectly, works very welk! And very fast shipping to Germany, thank you!

09/04/2016 15:56

Review by: Francesco

Is OK

Ottimo prodotto, forse un po' complesso per cambiare le pale, comunque ottimo

01/03/2015 17:02

Review by: John

The best!

The best folding spinner from the best retailer.

14/09/2014 13:03
