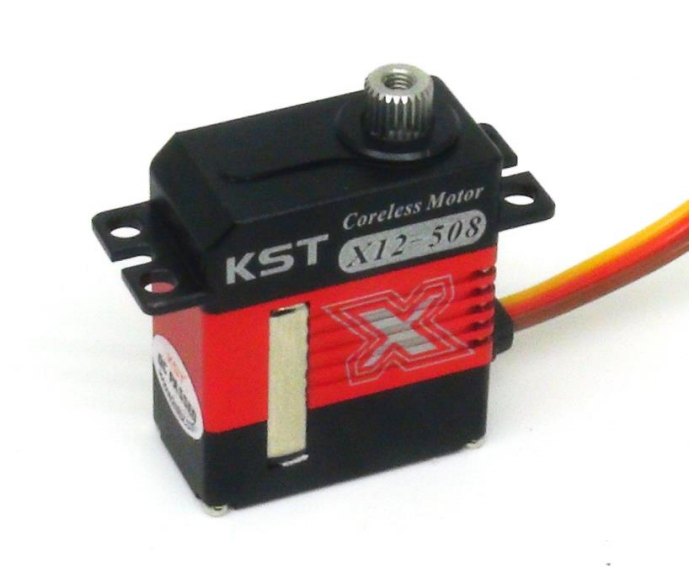

KST X12-508 Servo - 6.2Kg.cm 0.07s 20g 12mm

New KST X12-508 servo - a high voltage 12 mm thick 20 g servo similar to the MKS HV6125e

Operation Voltage(rated) 7.4V

Operation Voltage Range 4.8V-8.4V

Torque
4.2Kg.cm@6.0V
5.2Kg.cm@7.4V
6.20Kg.cm@8.4V

Speed
0.09sec/60°@6.0V
0.08sec/60°@7.4V
0.07sec/60°@8.4V

Weight 20 g

Travel Angle ±50° between 1000-2000us

Operating Temperature Range -20 to +65 deg C

More info soon.
