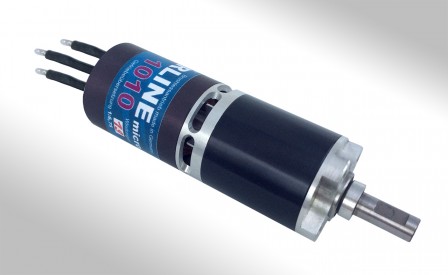

| Powerline Micro 1010 Turbo Weights | |
|---|---|
| Suitable for gliders weighing | Up to 1400 g max |
| Max power | 320W |
| Max current | 32A |
| Motor/gearbox weight | 68.5 g |
| Length | 58 mm |
| Diameter | 22 mm |
| Mounting pitch circle diameter | 17 mm |
| Shaft diameter | 5 mm |
| Gearbox ratio | 6.75:1 |
| Recommended ESC | YGE 35 LVT |
| Recommended propeller | Vitaprop 12x7, GM 12x8, VM 12x8, RF 12x8 (approx 32A on 3S) |
| Recommended battery | 3s Lipo up to 600 mAh |
| Powerline Micro 1010 Turbo Weights | |
|---|---|
| Powerline Micro 1010 Turbo | 68 g |
| Propeller RF 12 x 8 | 10 g |
| Spinner RF 30mm | 13 g |
| Lipo 3s 600 40C | 60 g |
| ESC YGE 35 LVT | 30 g |
| Plugs and screws | 4 g |
| Total weight | 185 g |
Review by: chris
Fantastic MotorPut this into a sprite hot-e and it climbs vertically drawing 39amps from a 850mah , very light and small. time will tell how it lasts but very impressed with build, weight , size and power. perfect job for sprite hot-e
Review by: Donald Grant
Works well smooth and powerful.Once I sorted out the right cells/battery and prop the motor is doing a great job. At present powering an Andreas 650gram ALES model with a GNB 2s 550mah drawing 24 amps with a 13x8 aeronaut folder.
The motor cuts at 200 meters before the 30 seconds is up taking the battery down to
60% capacity.
