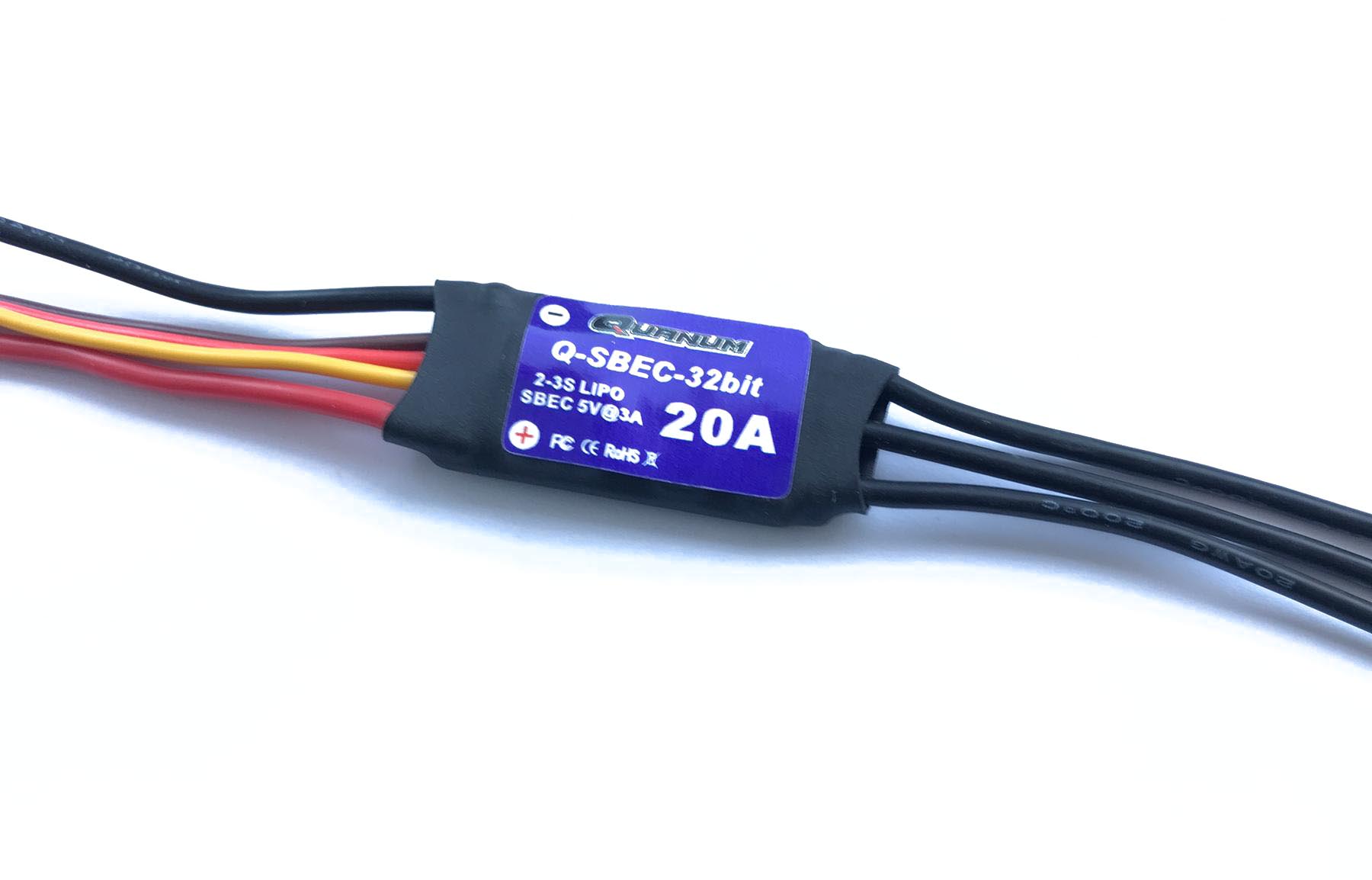

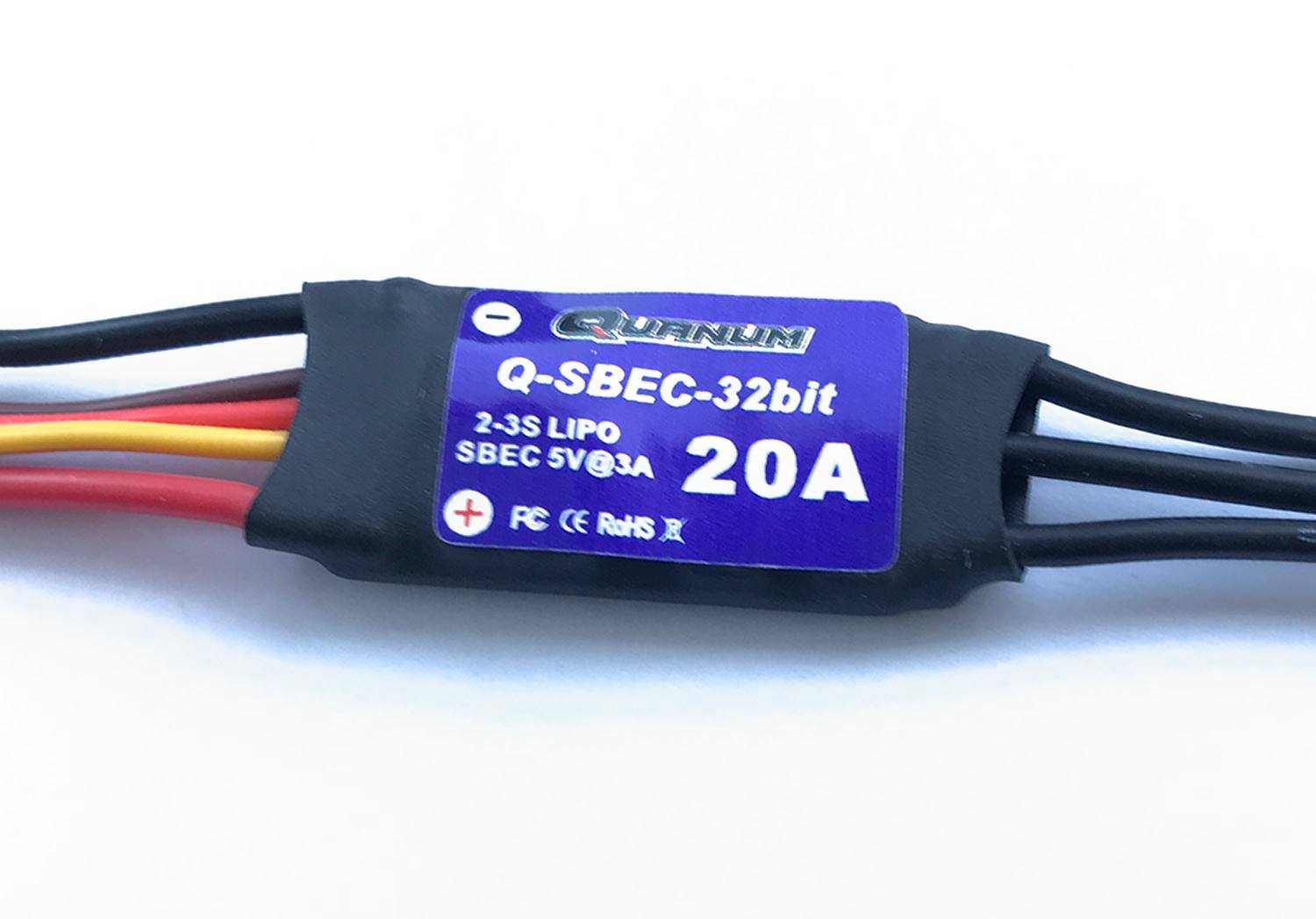

Quanum BLHeli32 20A ESC with 3A SBEC

This Quanum BLHeli32 20A ESC with SBEC is a modern lightweight "drone" speed control. However unlike most drone ESCs it has an integrated switching battery eliminator circuit (SBEC) for powering the RC.

• ARM 32bit 48 MHz MCU for precise timing and fast response.
• BLHeli32 software for most effective control algorithms and software performance.
• Supports PMW, DShot150/300/600/1200 and other communication modes.
• Ultra low resistance MOSFETs for lower heat, smaller size and lower weight.
• Pre-programmed for glider operation with brake on.
• Lost model facility if the throttle is kept low for a long time.

Suitable for lightweight electric gliders up to approx 2 m span and 20A current draw. Supplied ready programmed for glider operation with the brake set to 100%. See the PDFs linked below for programming info.

Quanum BLHeli32 20A ESC with SBEC Specification
Continuous Current	20A
Peak Current	28A for 10 seconds
Battery	2S - 3S LiPo
SBEC	5V @ 3A
Weight inc leads	8.3g
Weight ex leads	4.0g
Firmware	BLHeli_32
Programmable	Yes, with Arduino
PCB Size	26mm * 14mm
Battery connector	7 cm wires, no plugs
Motor connector	6 cm wires, no plugs
RC wire length	23 cm
