The
PNC Innovations 25 mm Electric DLG Motor Mount is a beautifully CNC machined motor mount for securely attaching 1805 and 1806 sized drone outrunner motors to discus launched glider and F5K fuselages.

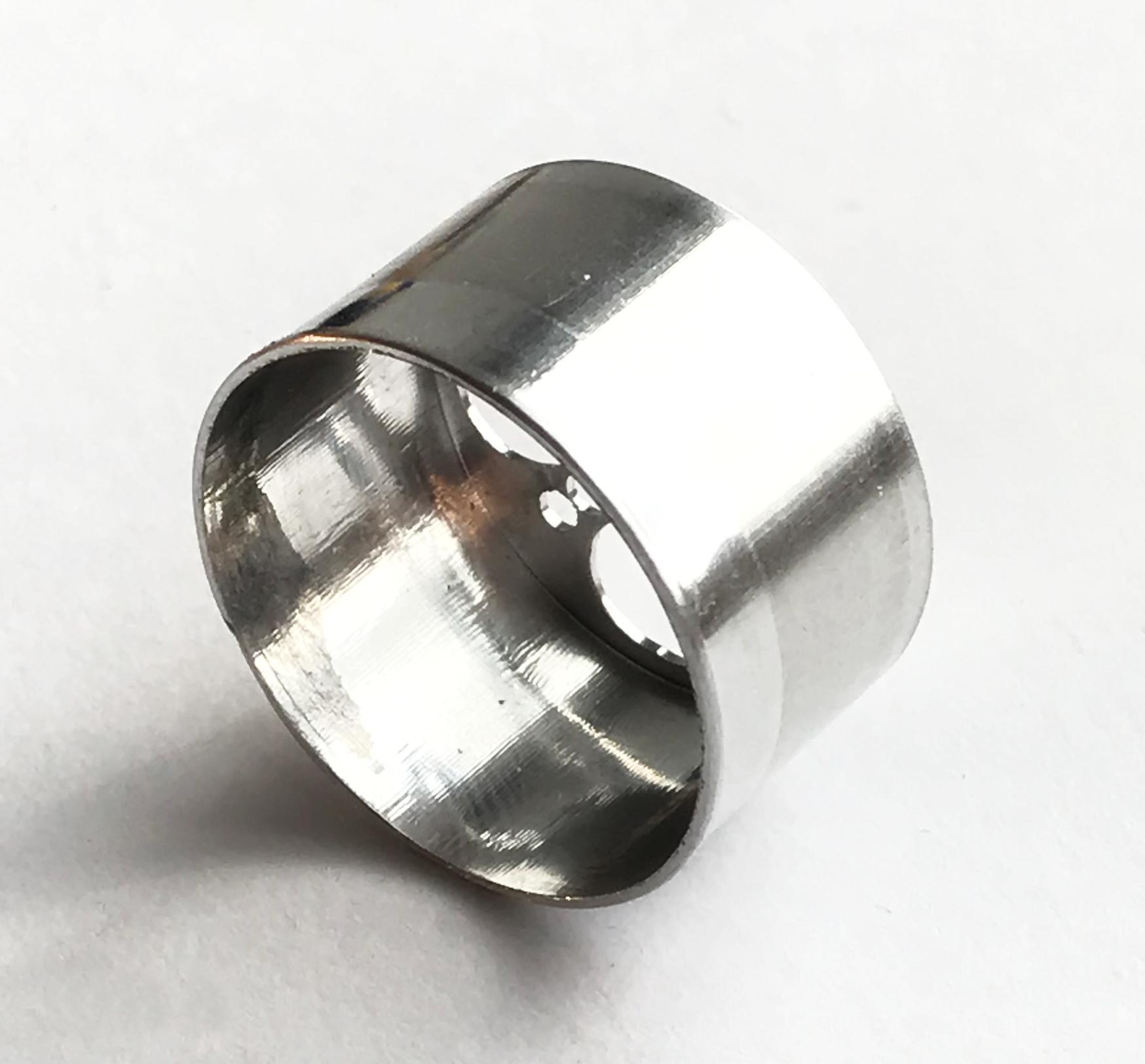

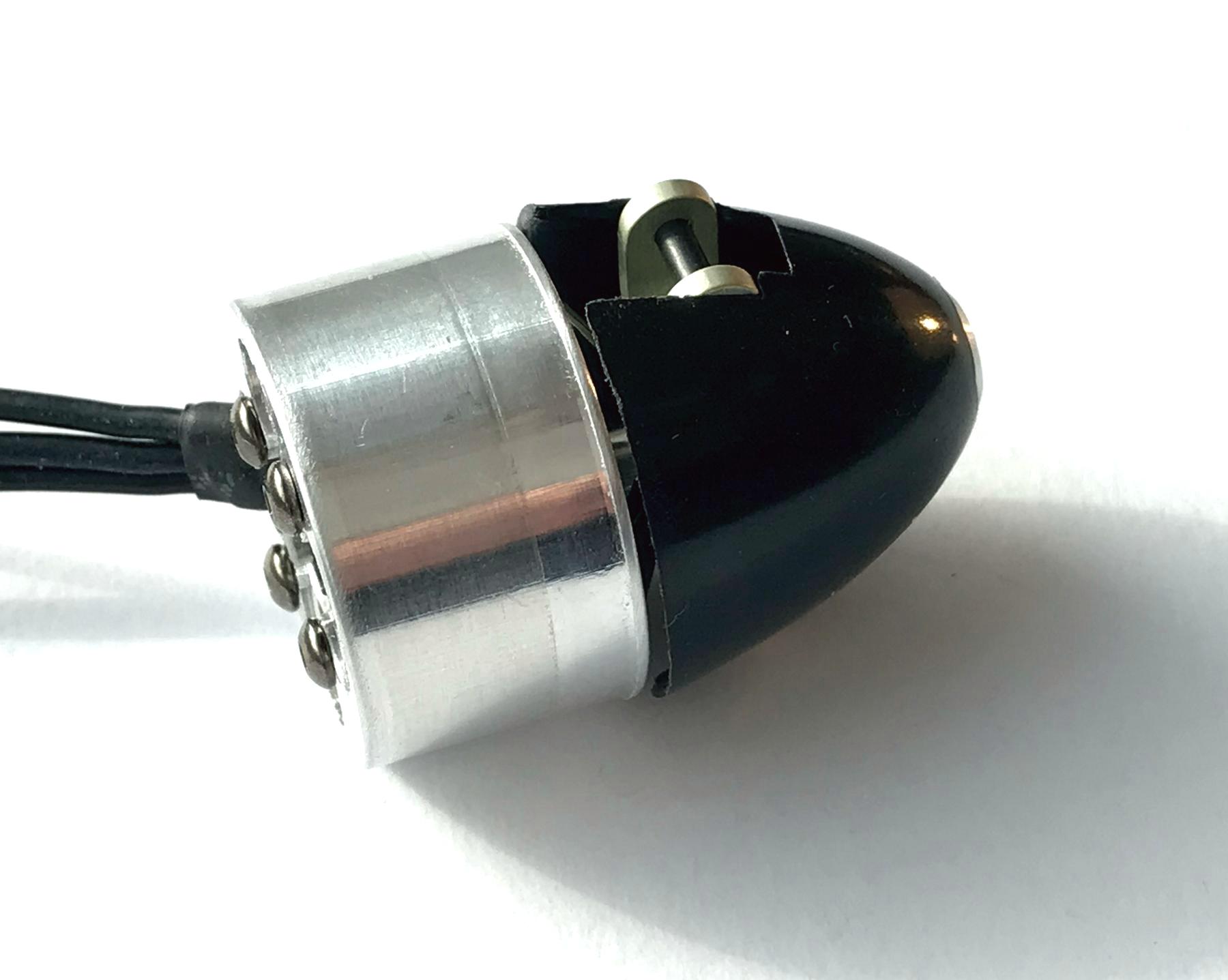

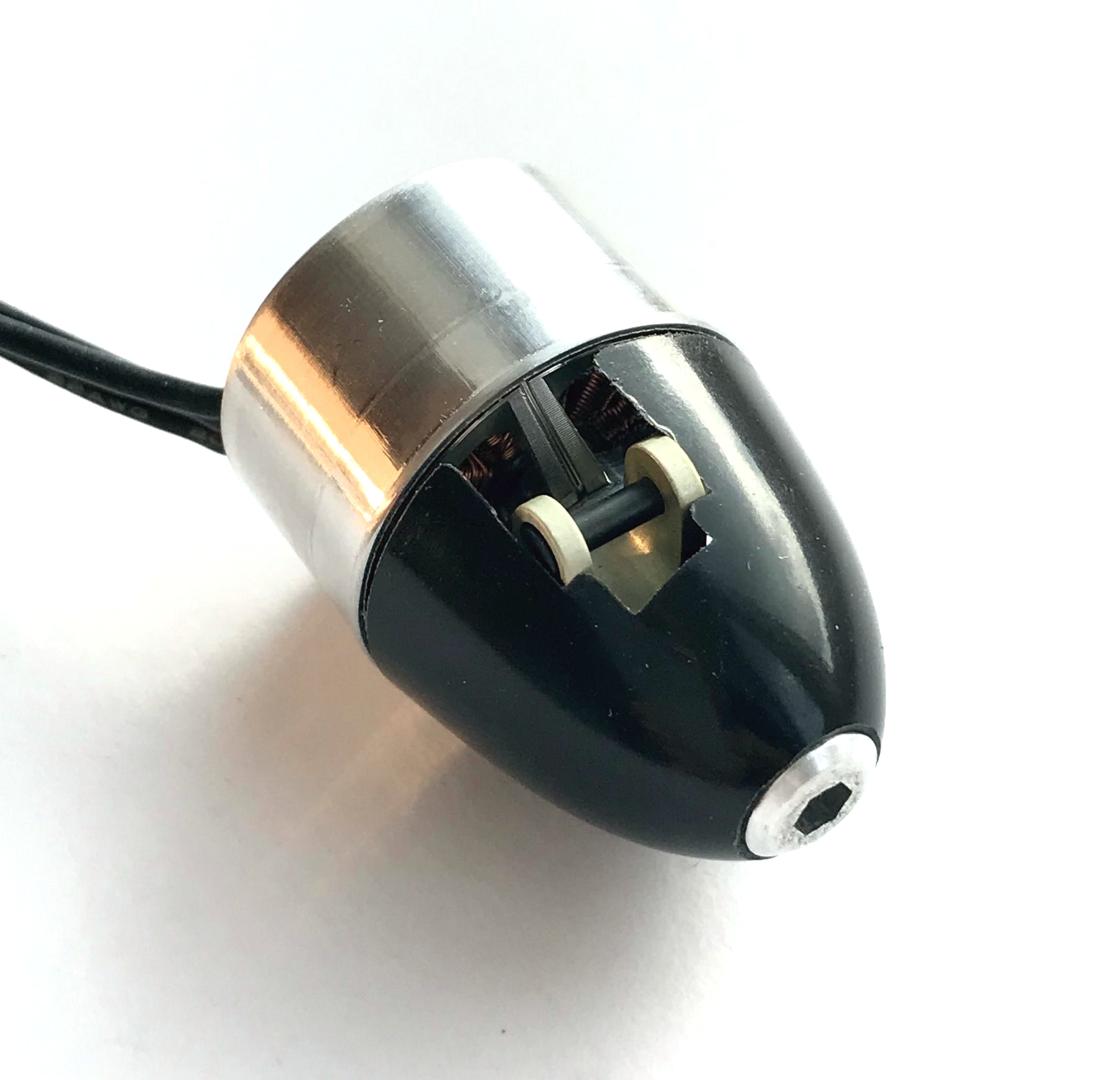

The mount is recessed to allow the outrunner motor to be fitted within the firewall, and the front aligns with VM25 mm and CN 25 mm spinners.

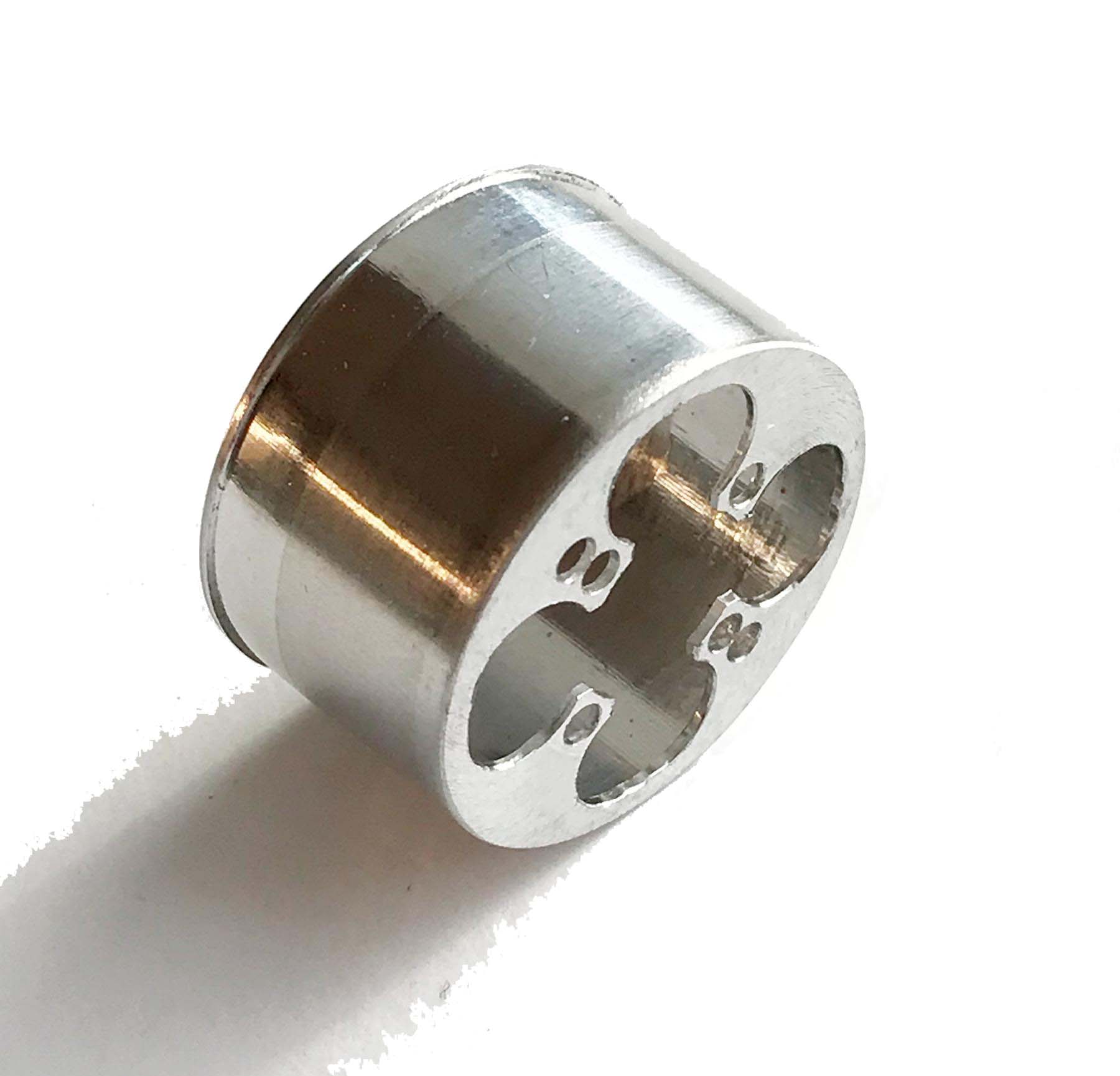

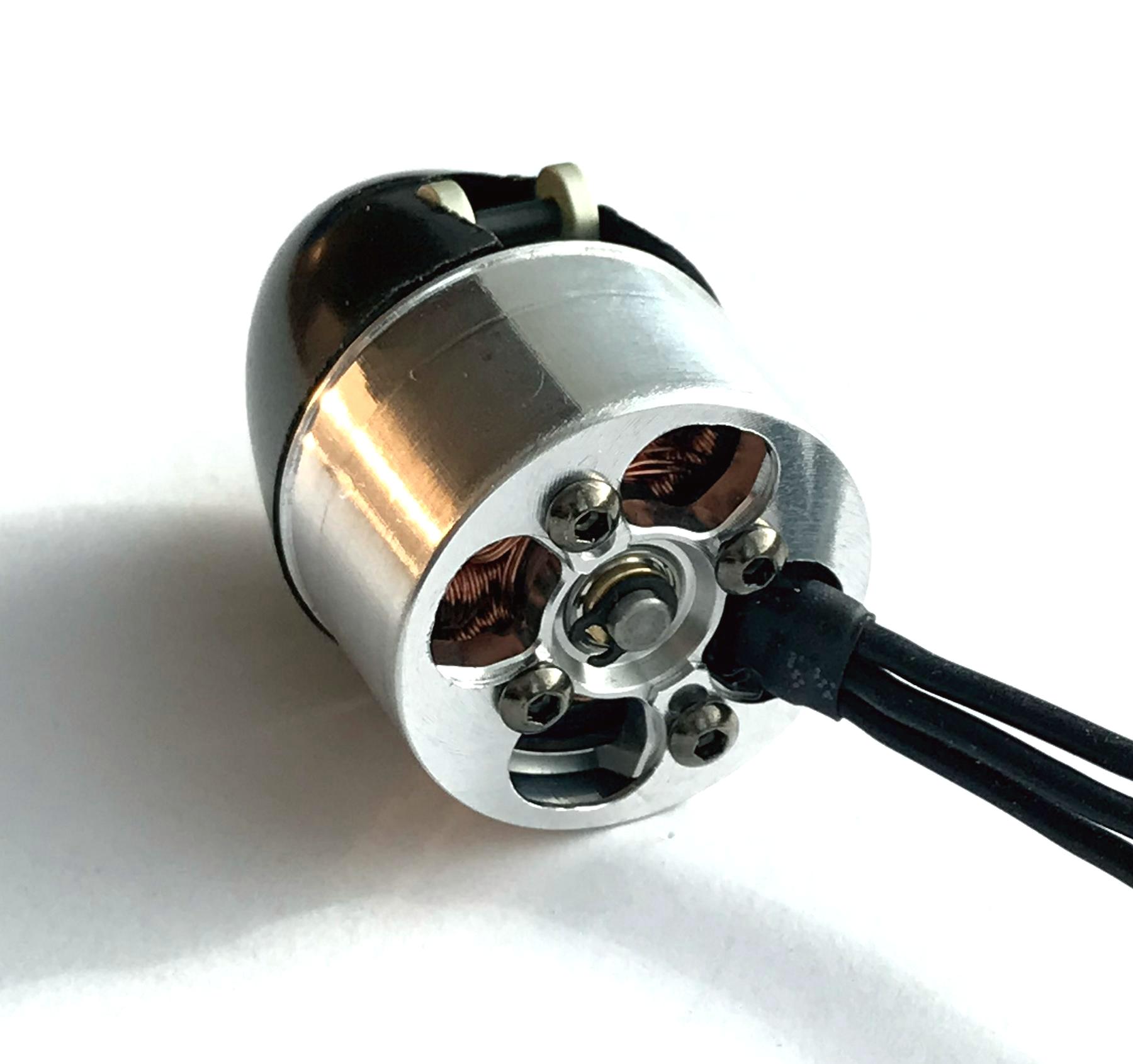

The mount has 4 M2 holes on a 12 mm diameter circle plus 2 on a 16 mm diameter.
| Electric DLG CNC Motor Mount |
|---|
| Fuselage outside diameter |
25.0 mm |
| Fuselage internal diameter |
24.5 mm |
| Predrilled holes A |
4 holes on a 12 mm circle |
| Predrilled holes B |
2 holes on a 16 mm circle |
| Motor mounting hole diameter |
2 mm |
| Weight |
1.5 g |
These mounts are:
- Easy to install.
- Very strong.
- Superb machining.
- They look great!
To attach these CNC motor mounts to carbon/kevlar/glass fuselages a strong high temperature glue is required. We recommend
this glue or JB Weld. Epoxy can be used but the strength is impaired at high temperatures.
