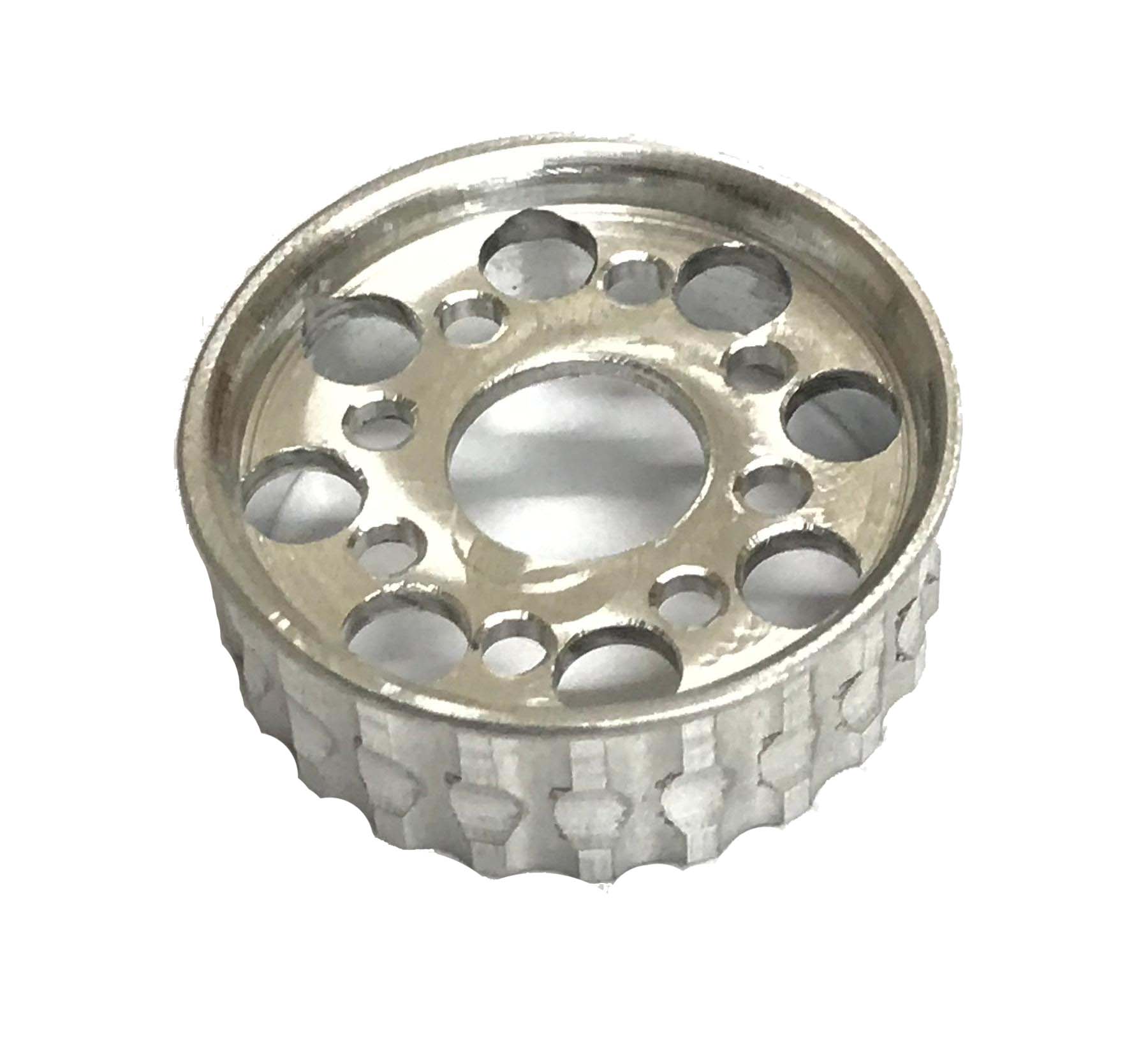

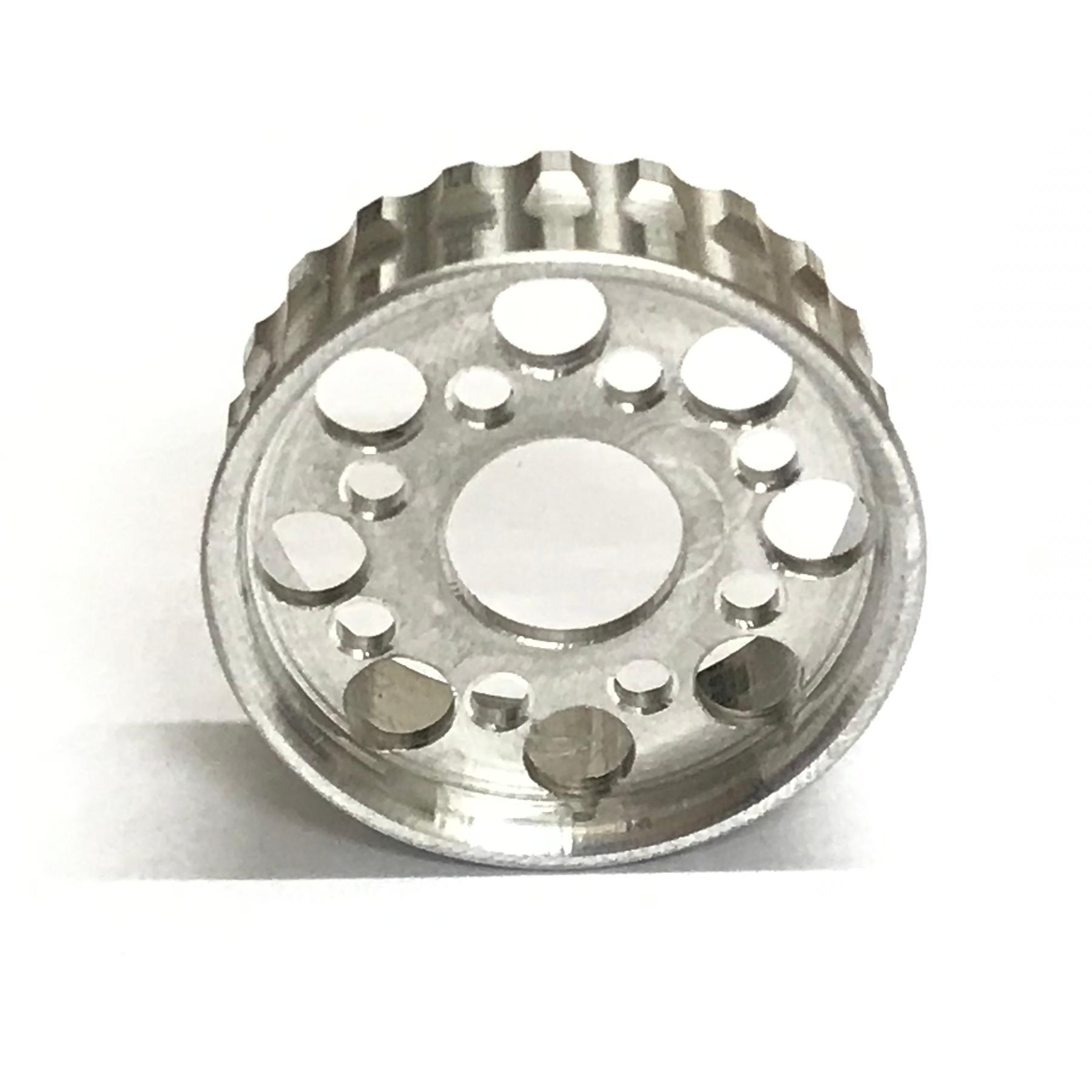

The PNC Innovations 30 mm Universal Motor Mout is a beautifully CNC machined motor mount for securely attaching many motors to the front of 30 mm diameter fuselages. The bolt hole pattern is as shown in the second photo.
Easy to install.
Very strong.
Superb machining.
They look great!
To attach these CNC motor mounts to carbon/kevlar/glass fuselages a strong high temperature glue is required. We recommend this glue or JB Weld. Epoxy can be used but the strength is impaired at high temperatures.
30mm Universal Motor Mount
Fuselage outside diameter
30 mm
For fuselage internal diameter
28 mm
Firewall internal diameter
25.5 mm
Centre hole
12.1 mm
Predrilled hole pattern 1
4 holes on a 16 mm diameter circle
Predrilled hole pattern 2
4 holes on a 19 mm diameter circle
Sorry, these do not fit Mega 16/15/xx motors, the motor diameter is too great.
