This

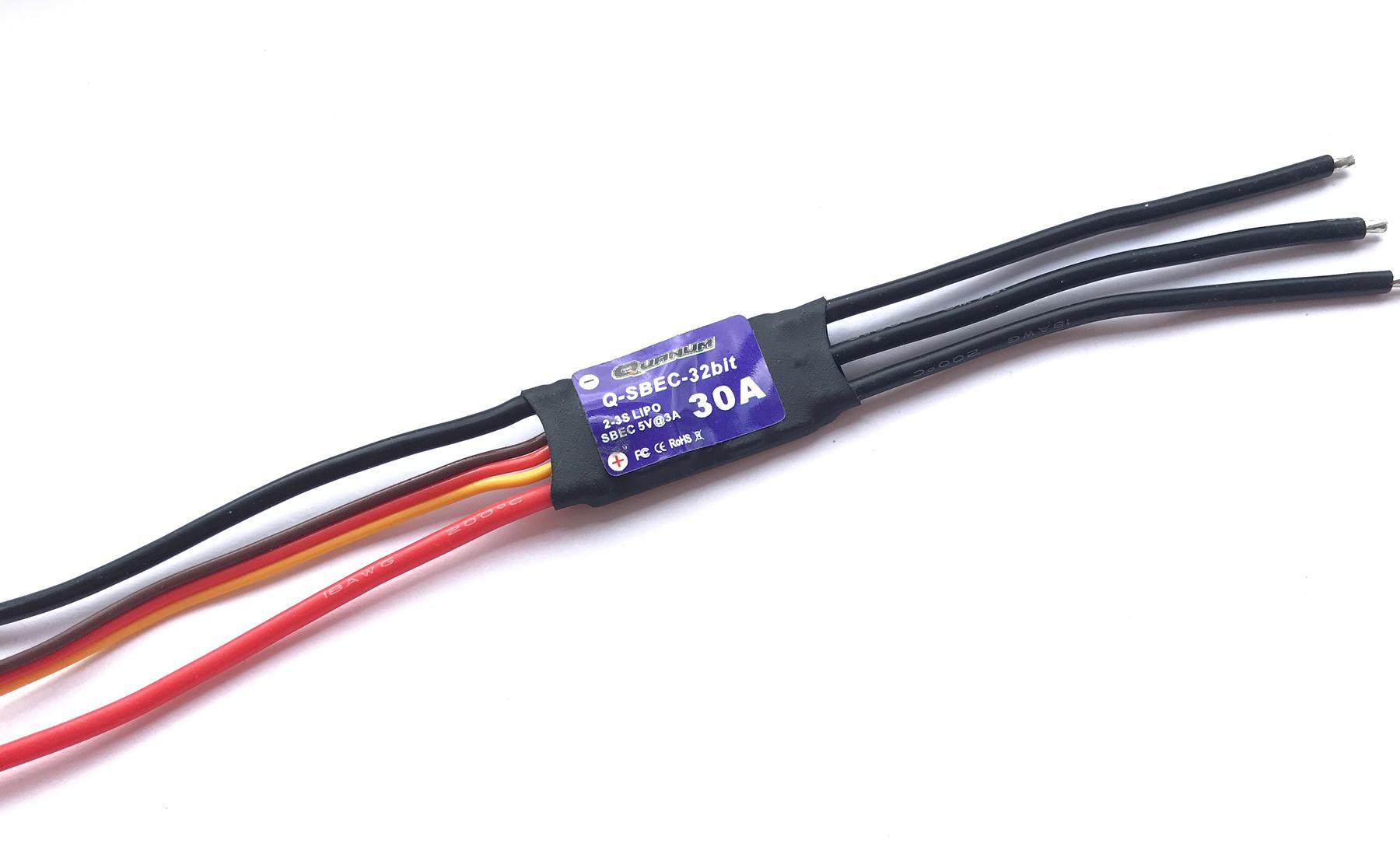

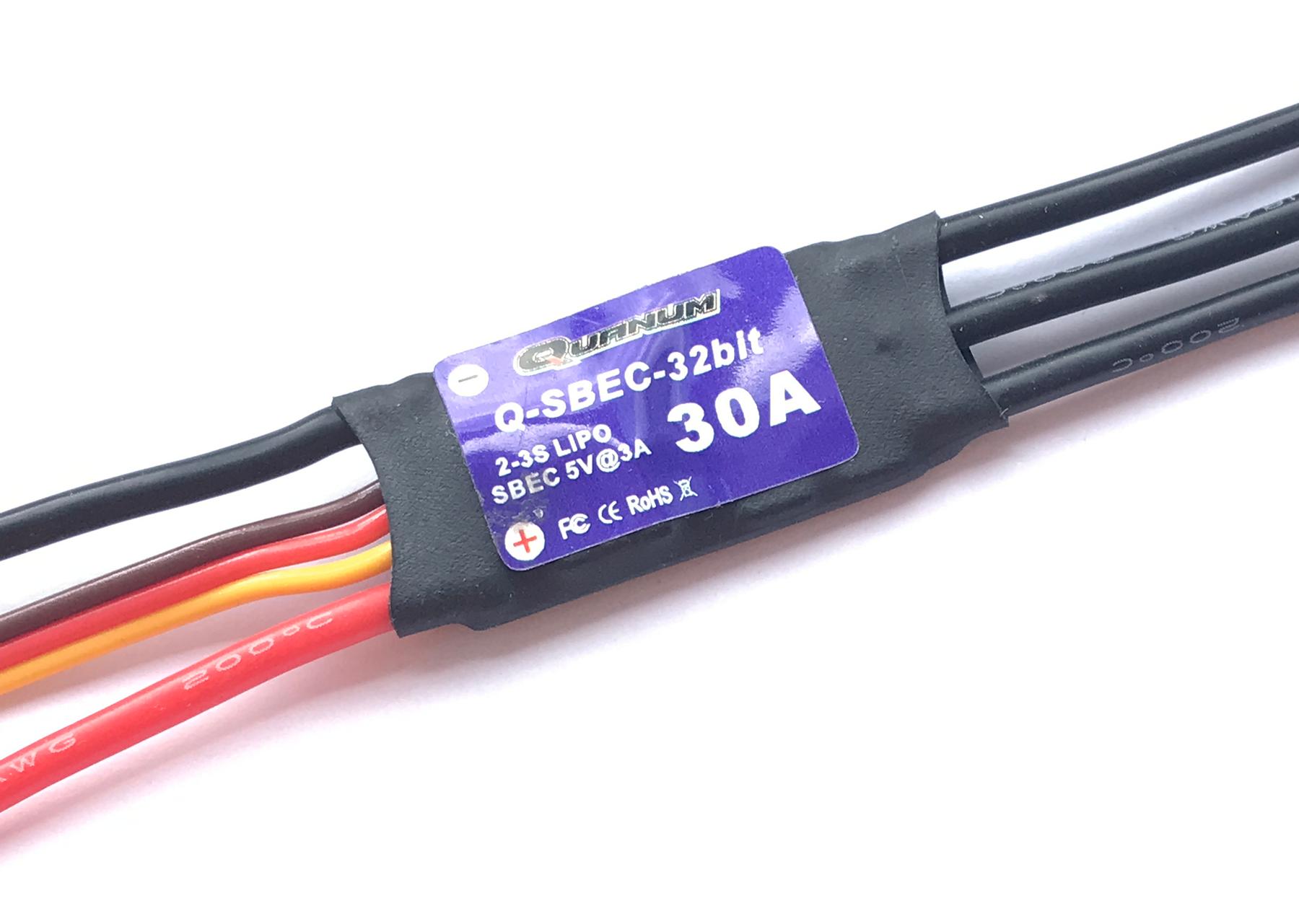

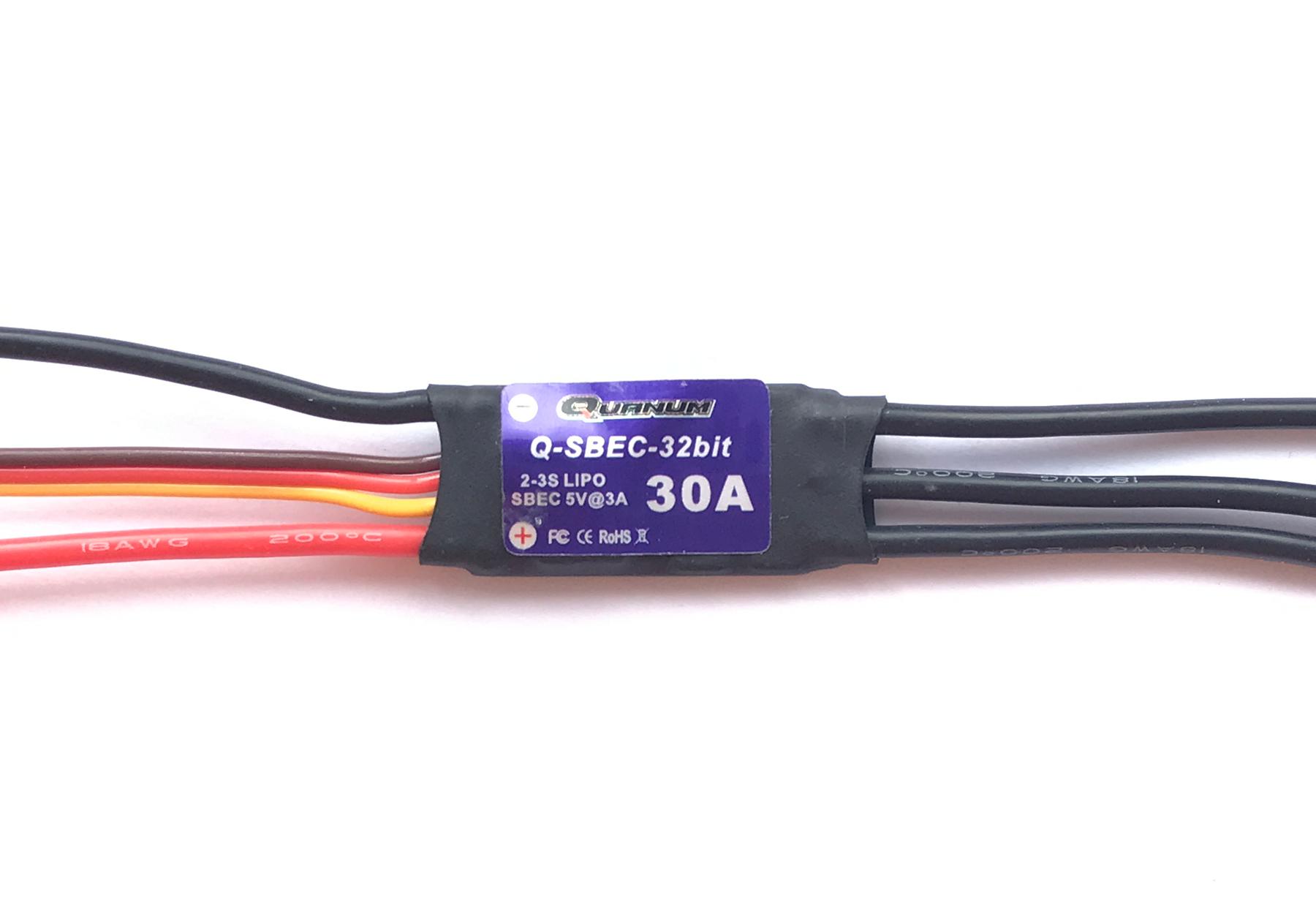

Quanum BLHeli32 30A ESC with SBEC is a modern lightweight "drone" speed control. However unlike most drone ESCs it has an integrated switching battery eliminator circuit (SBEC) for powering the RC.
- ARM 32bit 48 MHz MCU for precise timing and fast response.
- BLHeli32 software for most effective control algorithms and software performance.
- Supports PMW, DShot150/300/600/1200 and other communication modes.
- Ultra low resistance MOSFETs for lower heat, smaller size and lower weight.
- Pre-programmed for glider operation with brake on.
- Lost model facility if the throttle is kept low for a long time.
Suitable for lightweight electric gliders up to approx 3 m span and 30A current draw. Supplied ready programmed for glider operation with the brake set to 100%. See the PDFs linked below for programming info.
| Quanum BLHeli32 30A ESC with SBEC Specification |
|---|
| Continuous Current |
30A |
| Peak Current |
40A for 10 seconds |
| Battery |
2S - 3S LiPo |
| SBEC |
5V @ 3A |
| Weight inc leads |
9.5g |
| Weight ex leads |
4.5g |
| Firmware |
BLHeli_32 |
| Programmable |
Yes, with Arduino |
| PCB Size |
26mm * 14mm |
| Battery connector |
7 cm wires, no plugs |
| Motor connector |
6 cm wires, no plugs |
| RC wire length |
23 cm |
