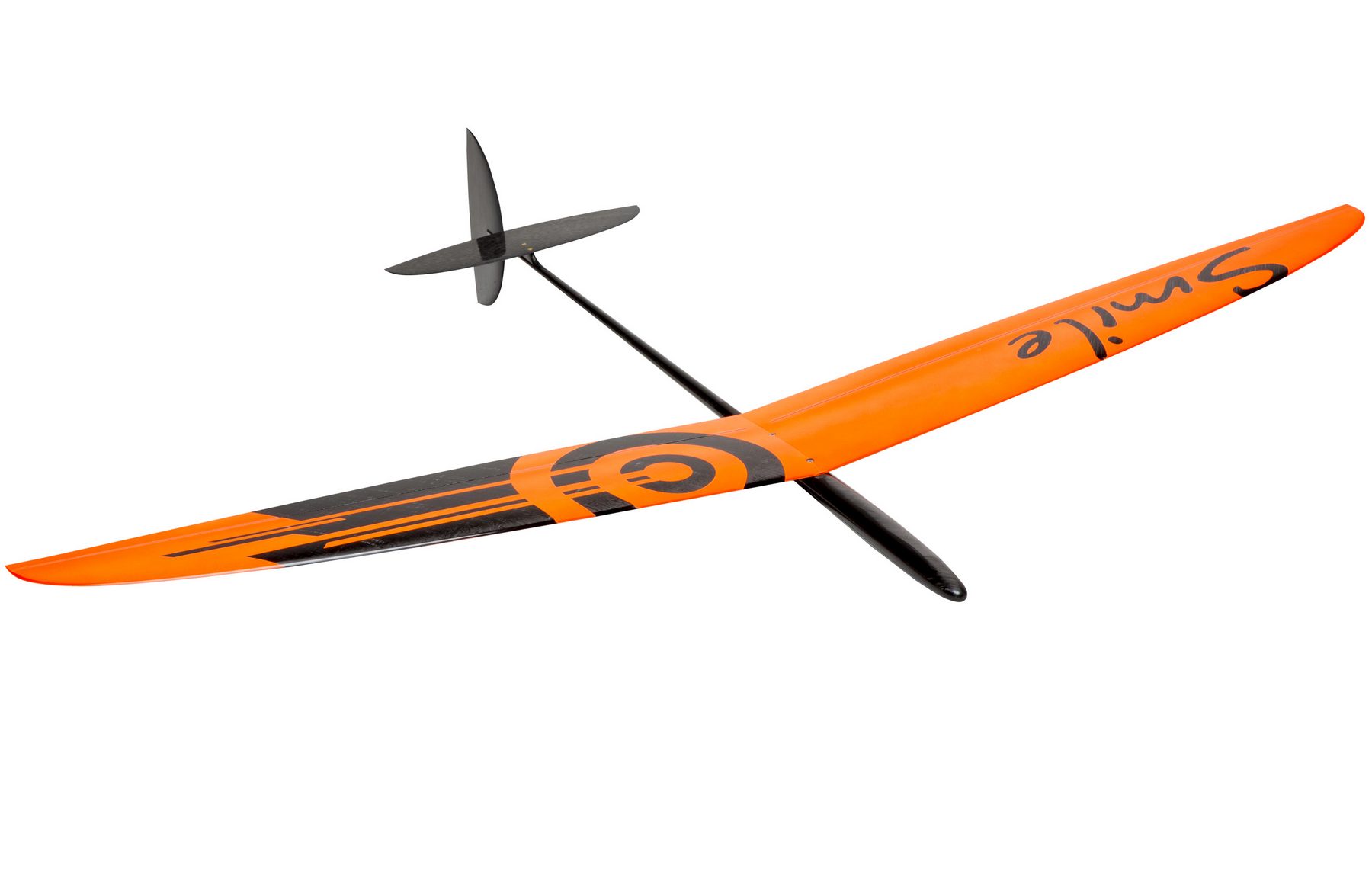

Smile F3K 1.5m DLG

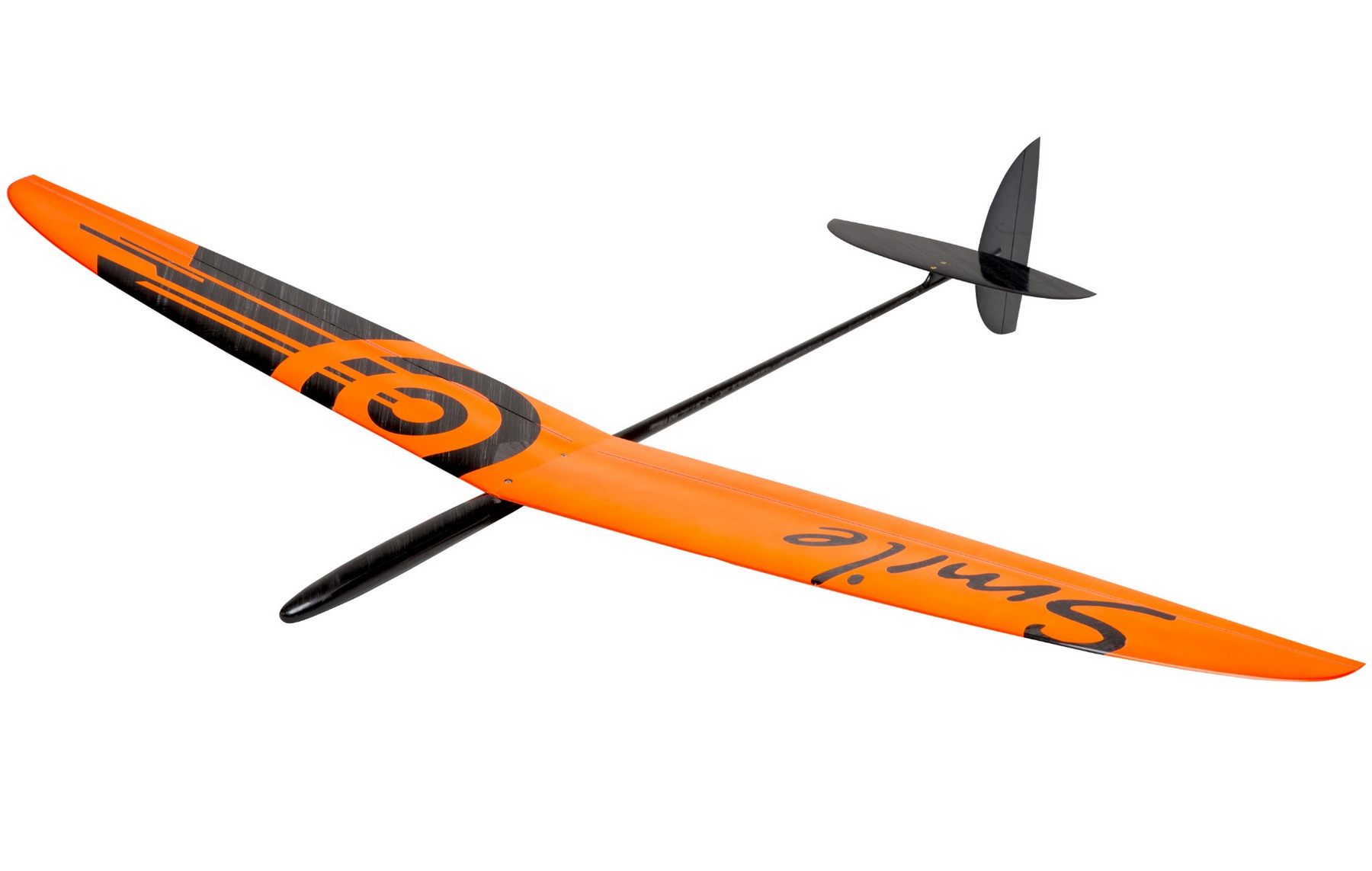

The Smile F3K is a great discus launched glider from AJ Aeromodels. Like the Snipe it has very high aspect ratio wing, giving it a high launch and a great glide angle. The design shows a strong Snipe influence, employing similar pylon mounted tailplane. Like the Snipe the model flies very well, with high launches and a good speed range.

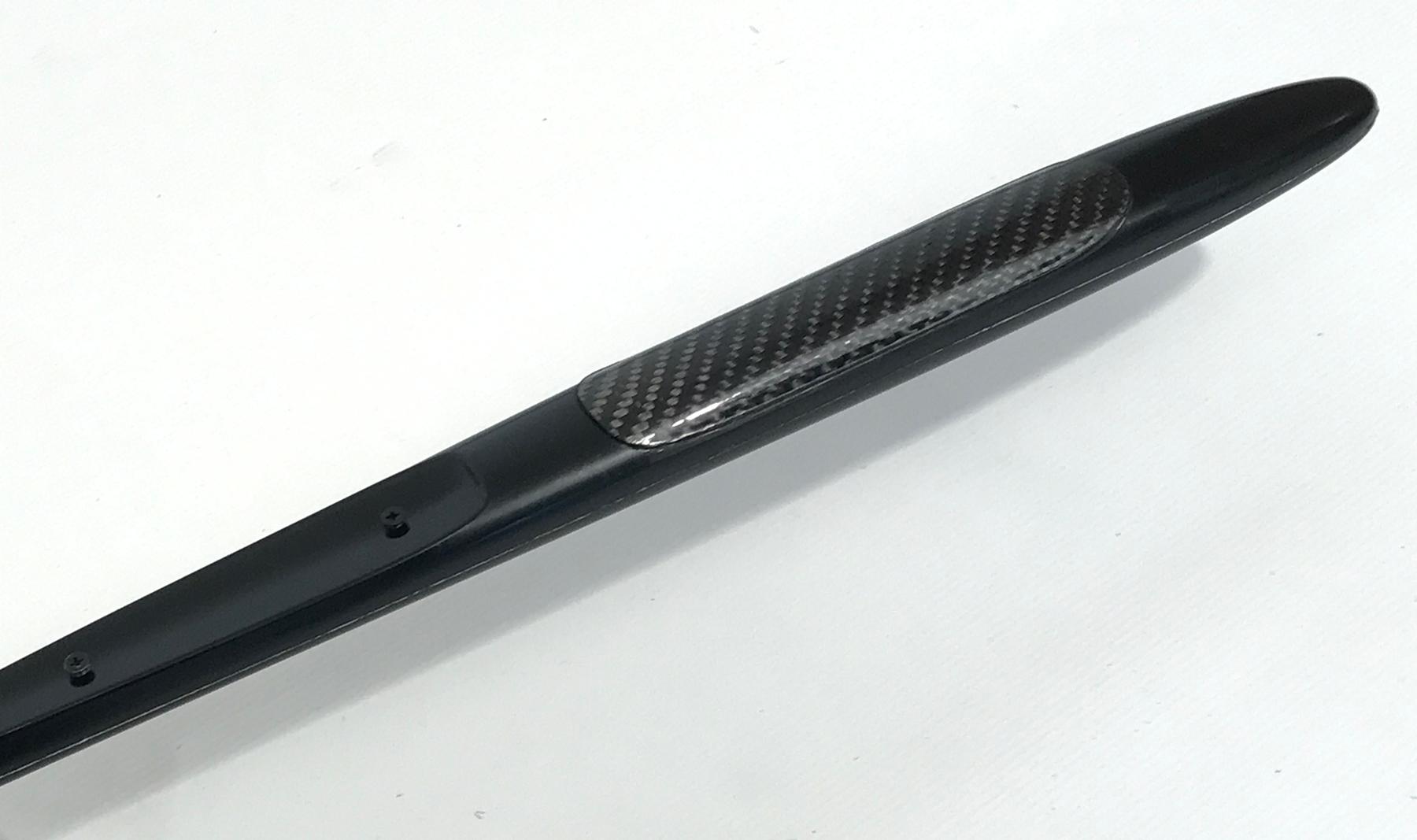

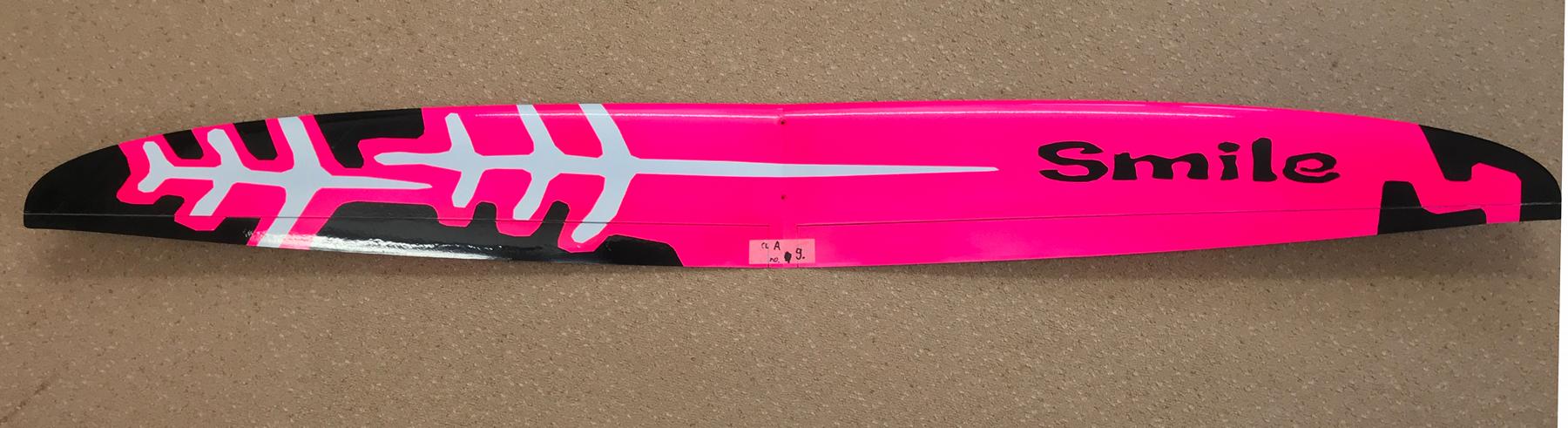

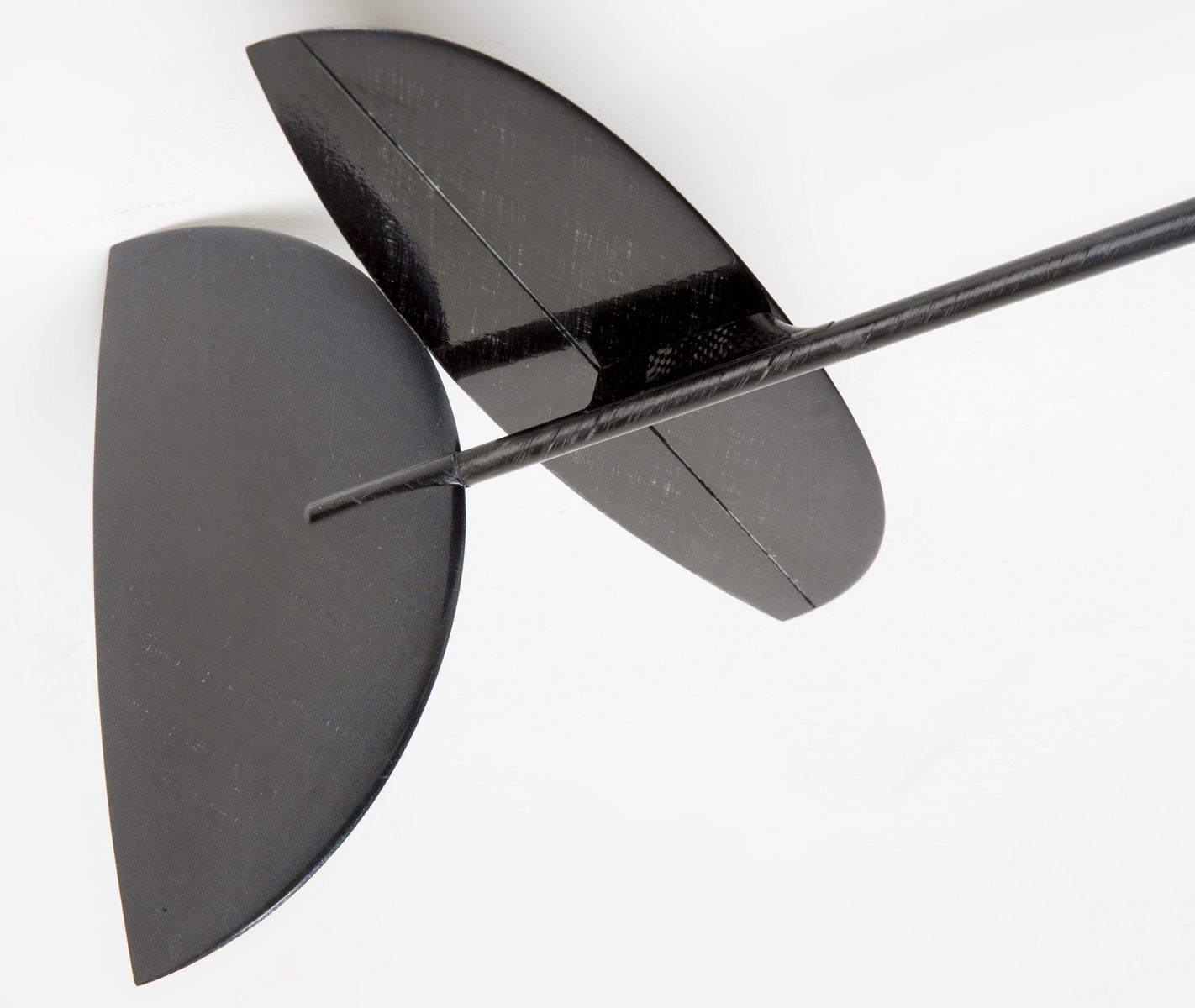

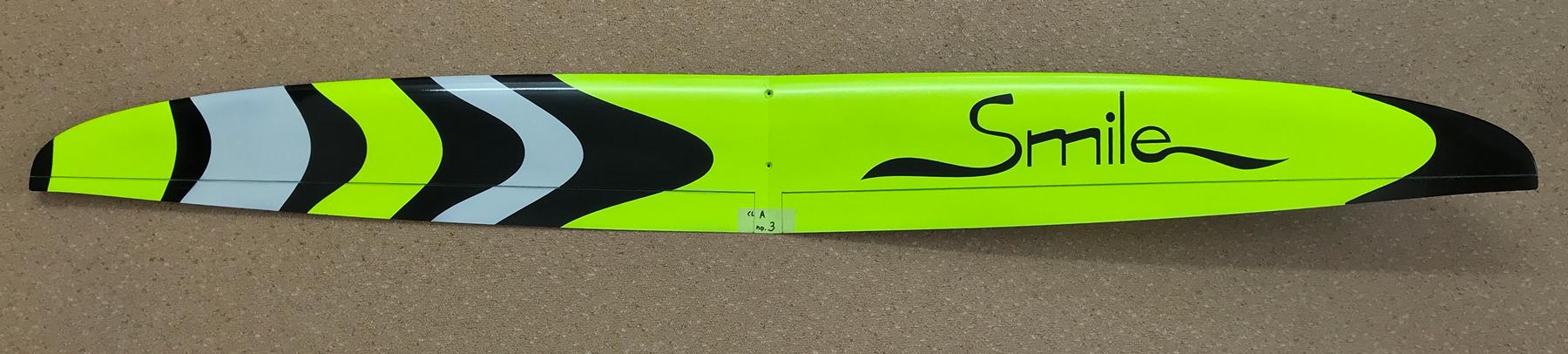

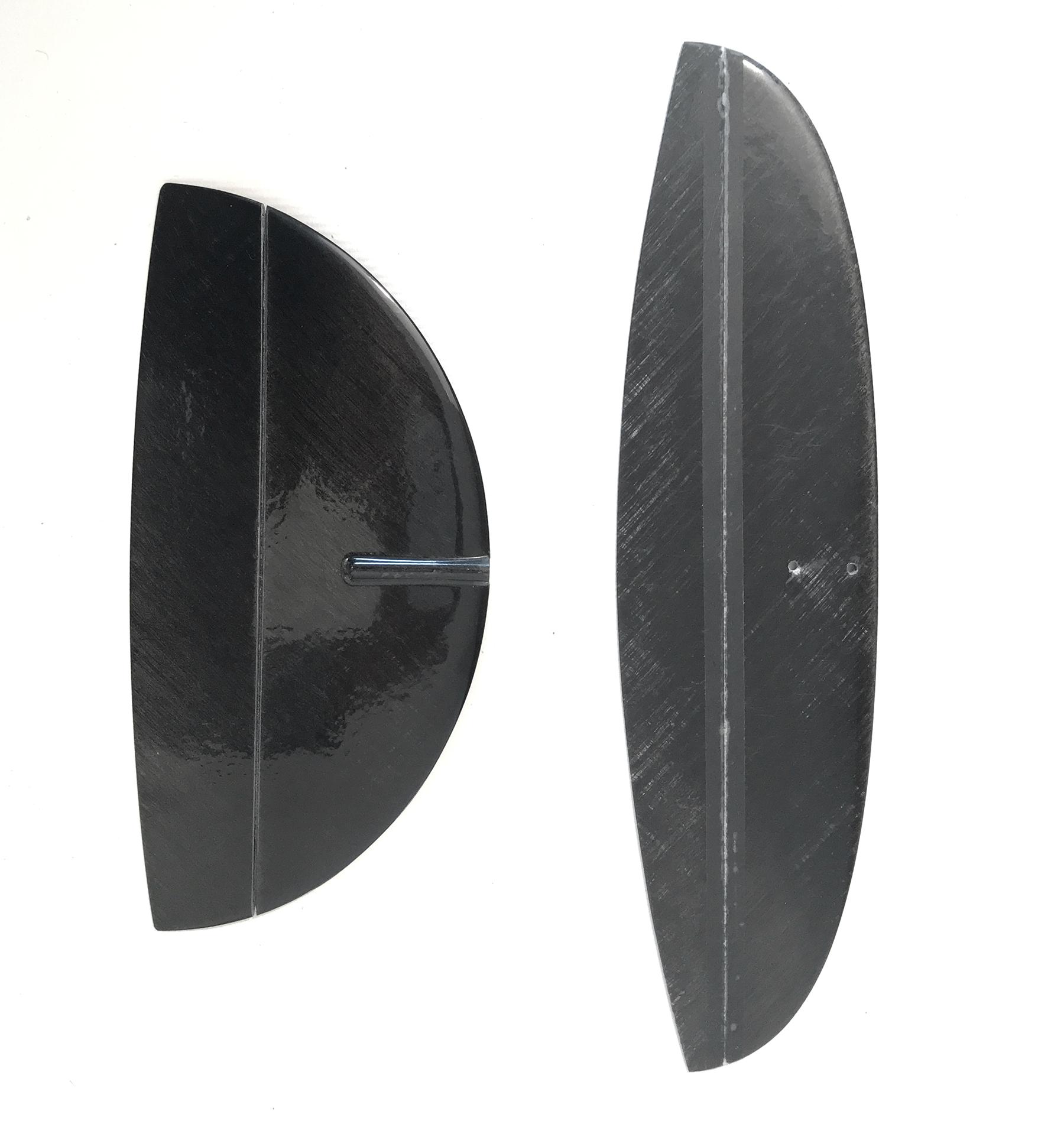

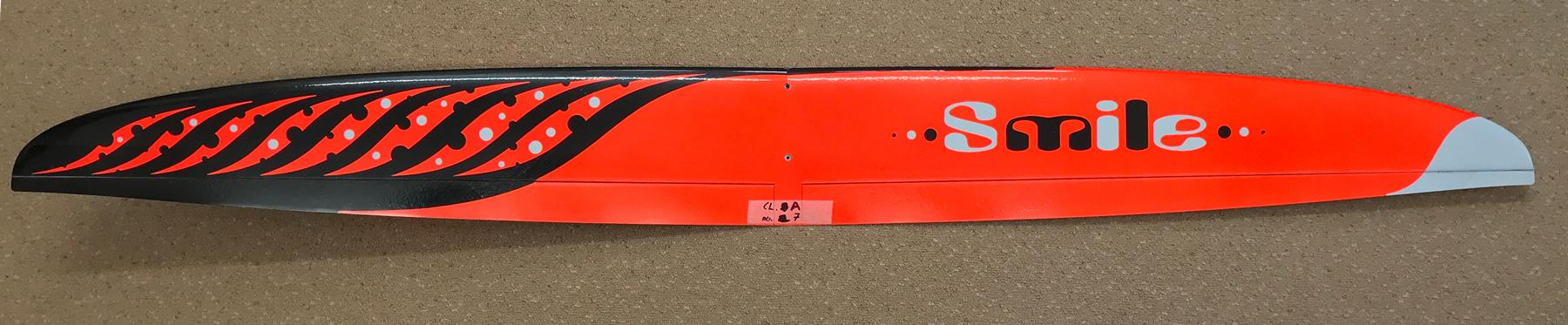

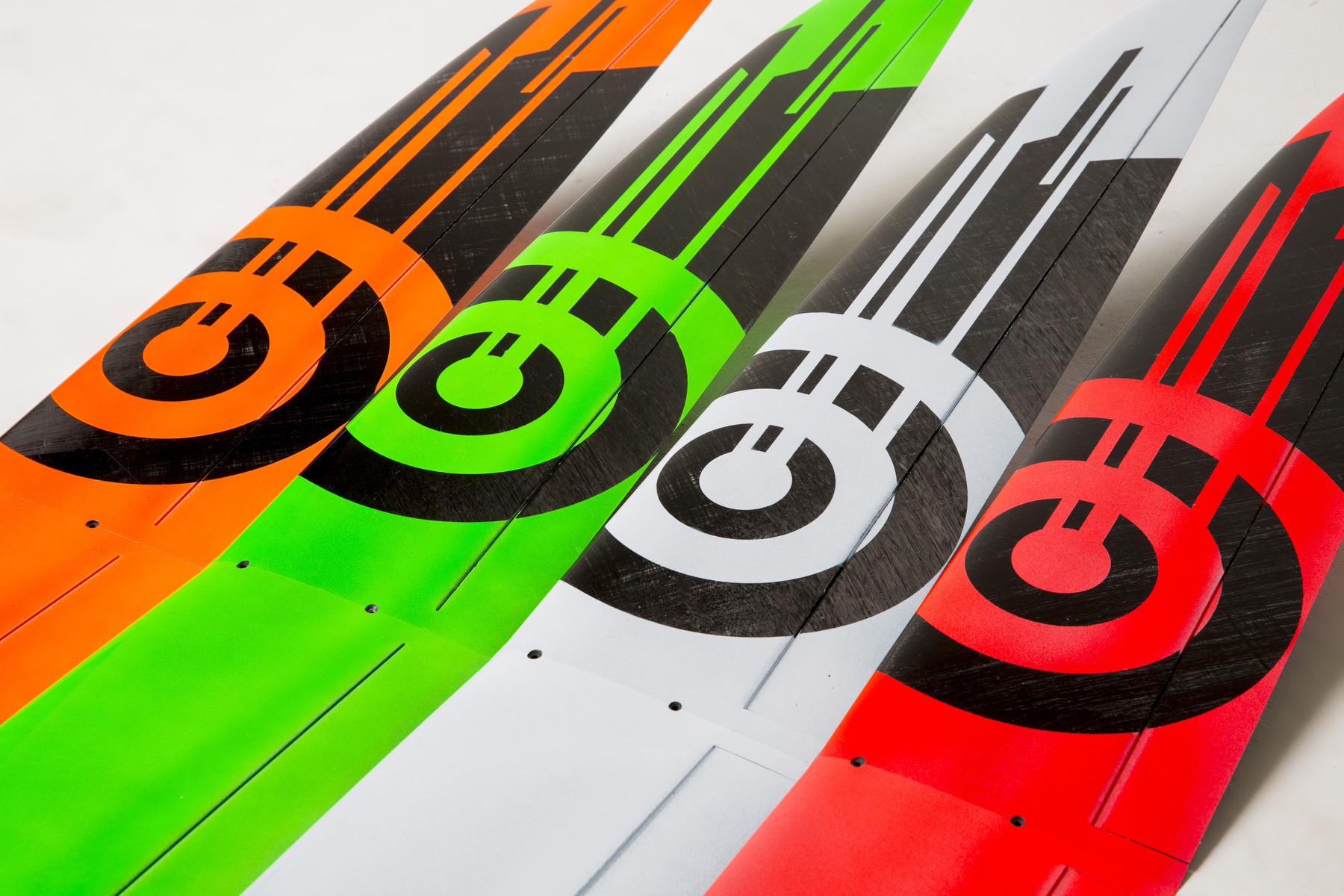

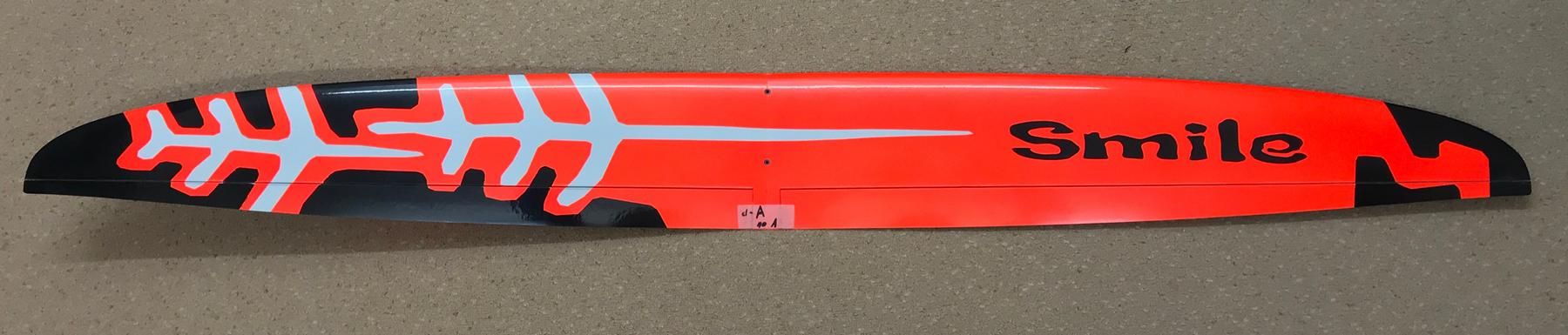

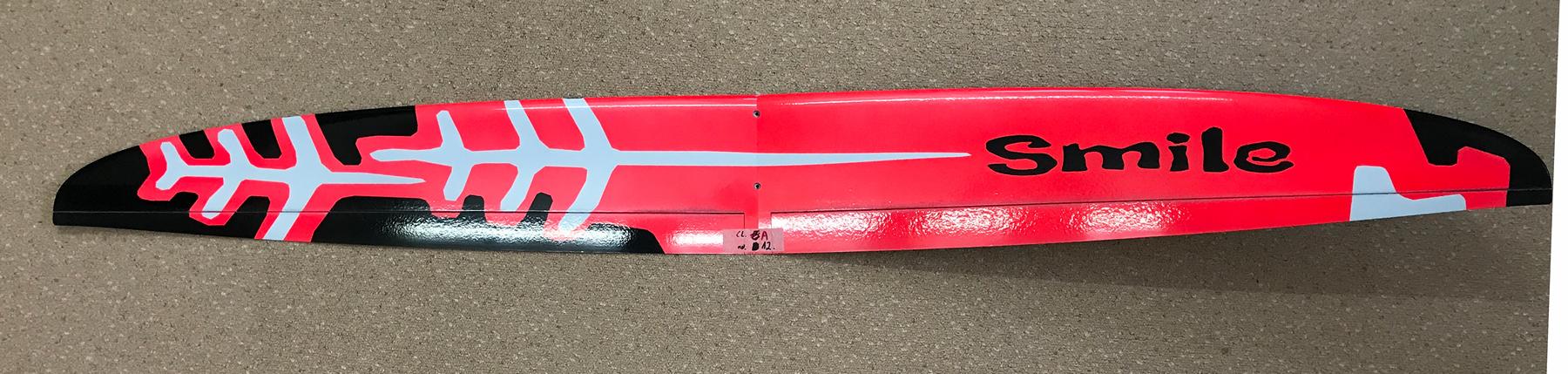

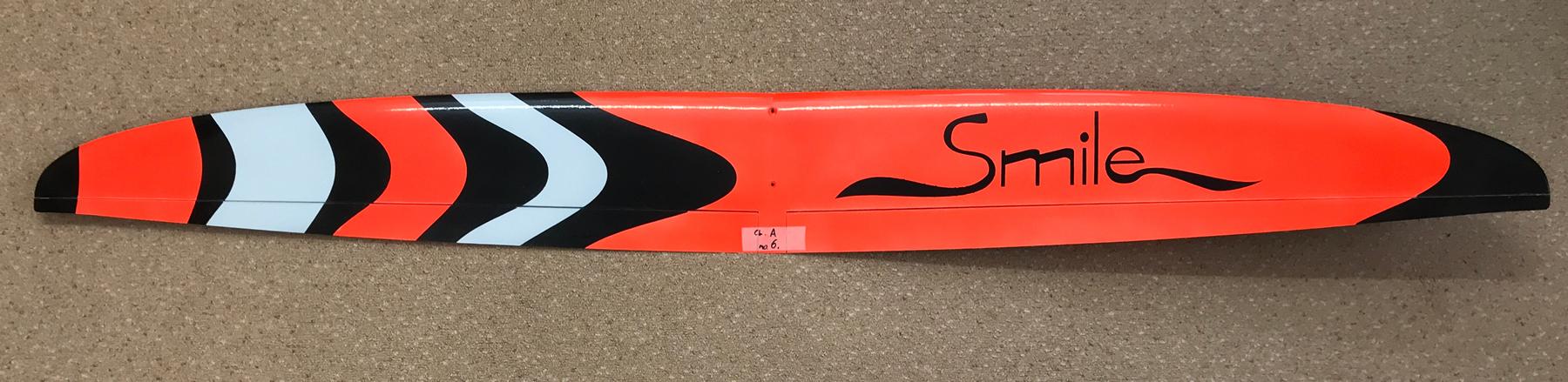

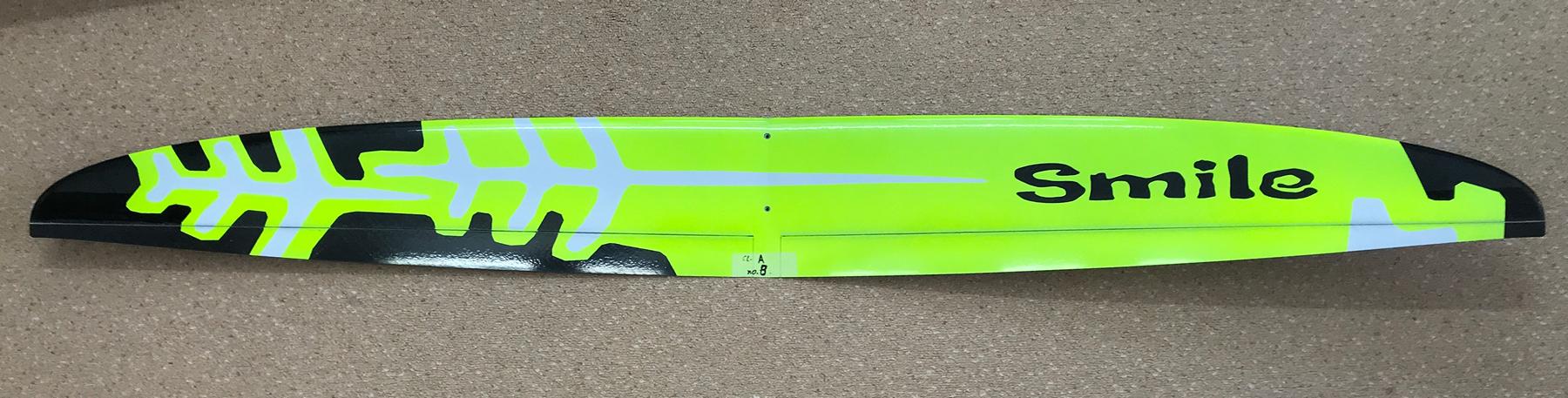

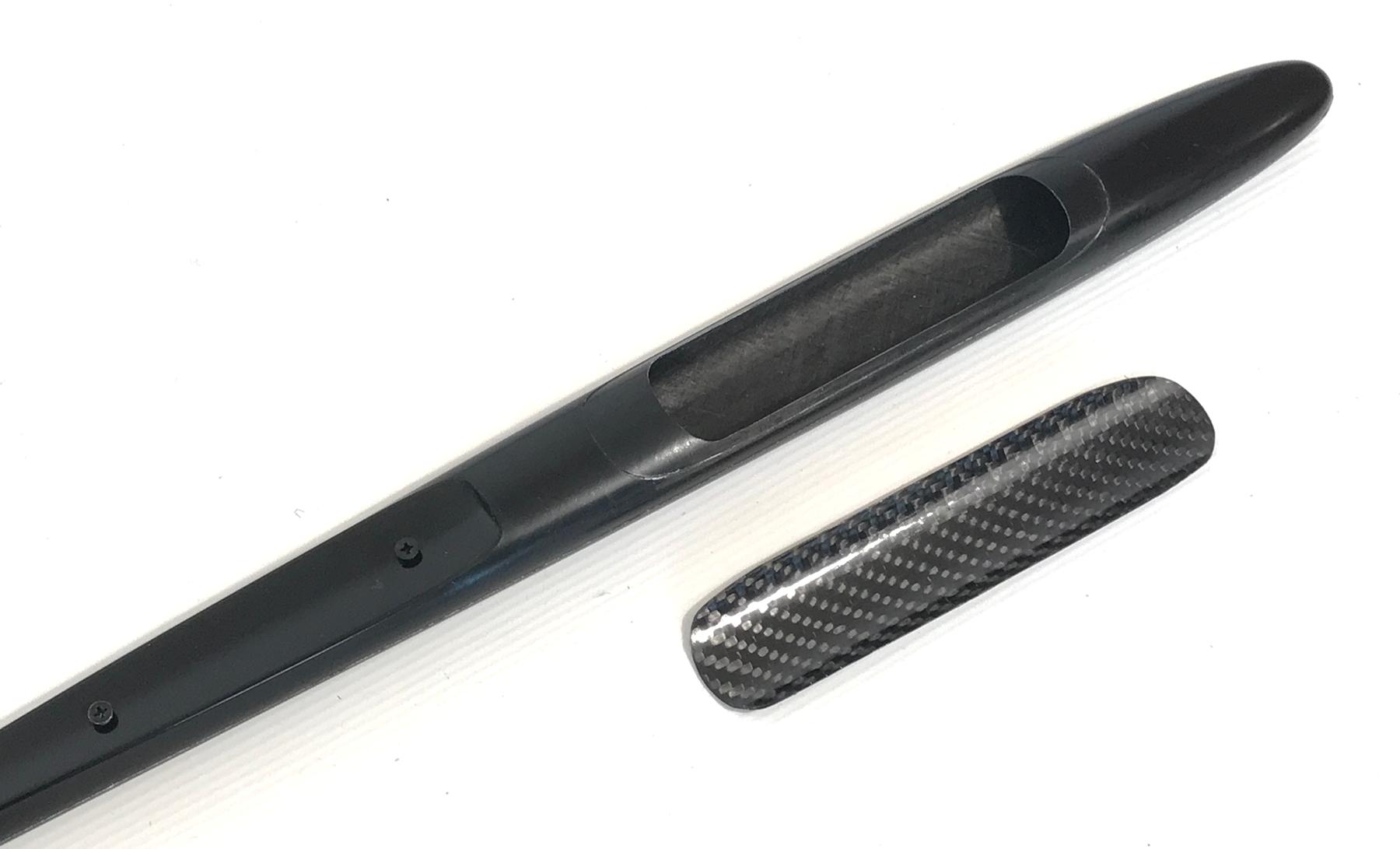

The wing and tail are beautifully molded from ultra-light spread carbon over a Rohacell 31 foam core. This makes the wing light, accurate, and comparatively tough and repairable if necessary. The lightweight tailplane (horizontal stabiliser) is mounted on a molded carbon pylon, which can be mounted above or below the boom, to the modeller's preference. The fuselage is a very rigid spread carbon molding, with a good sized canopy hatch, aiding the RC installation. The tailboom has an oval cross section to increase stiffness and improve the launch height.

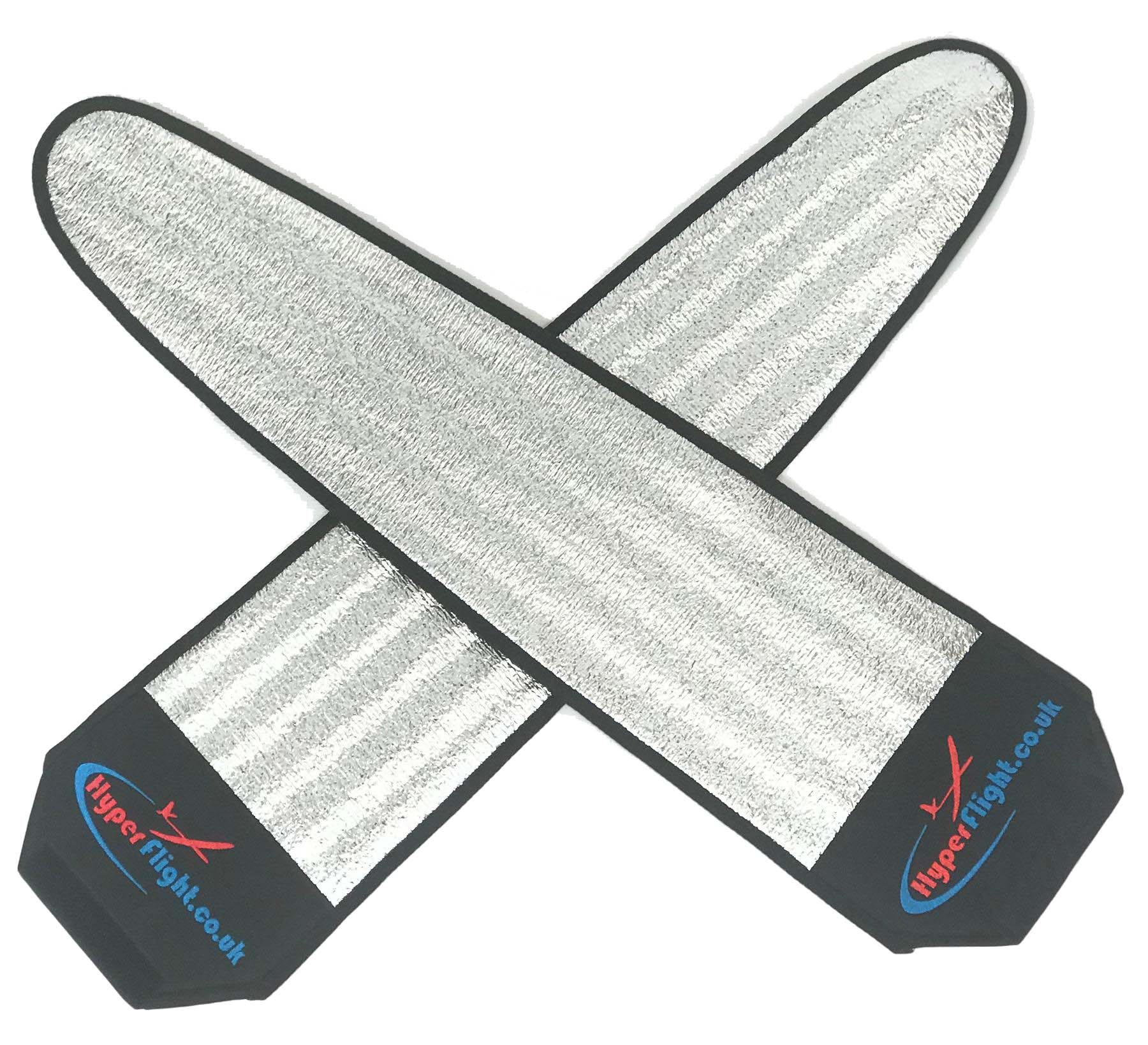

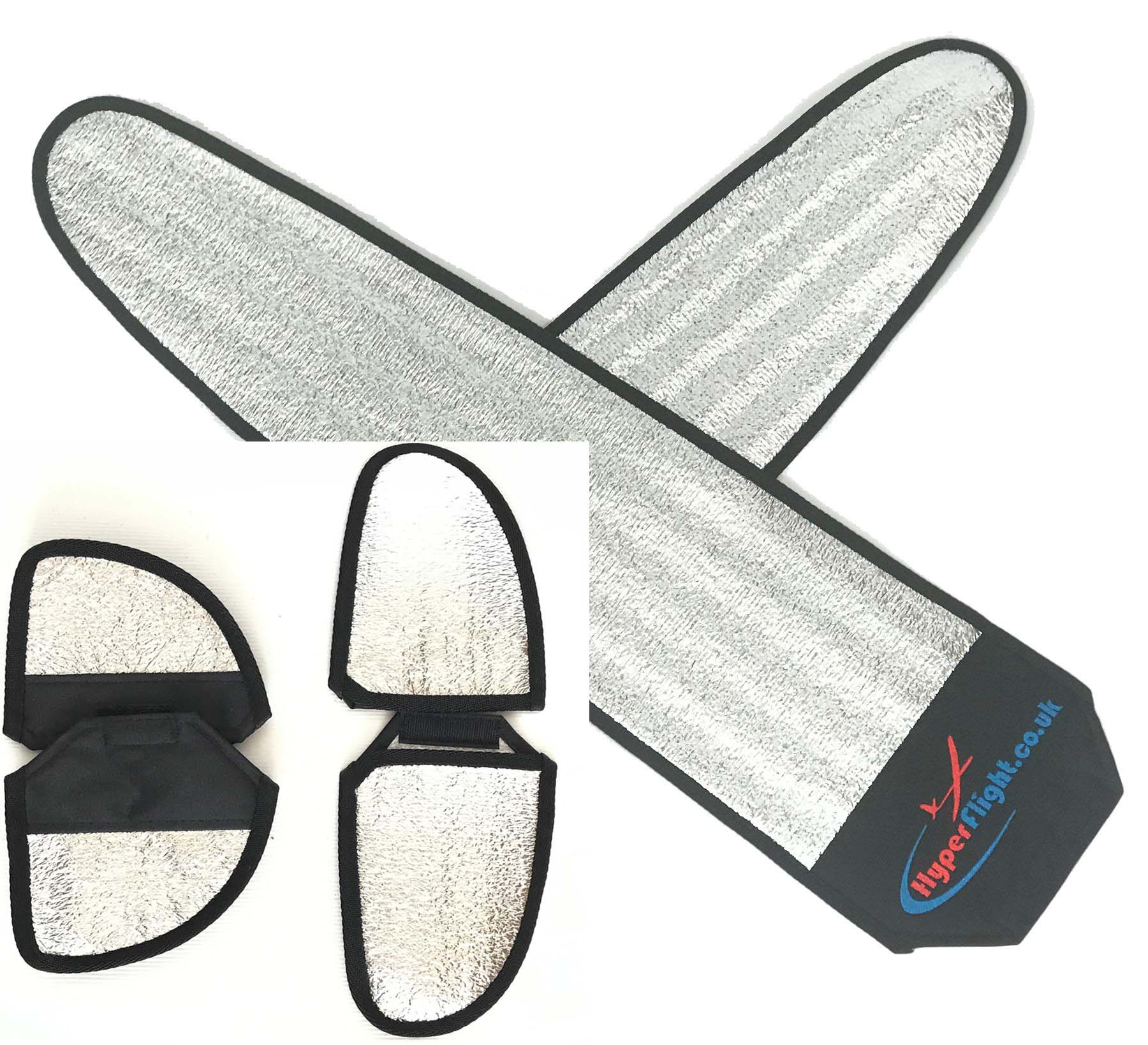

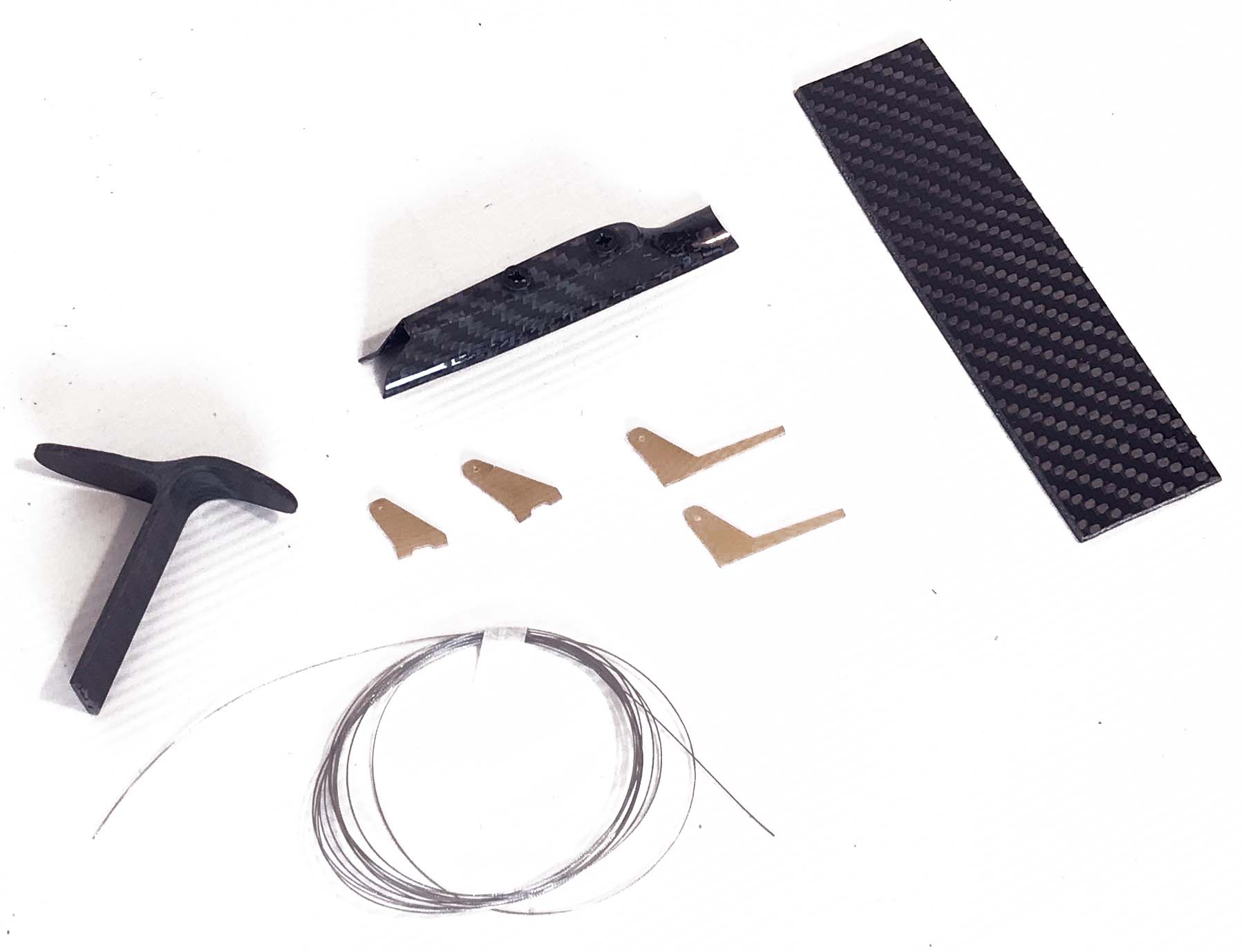

The model is supplied with horns, pushrods, pull cable, torque springs, servo mounting plate and a very nice offset throwing blade. The wings are supplied in thin foam bags but fit nicely in our DLG F3K Wing Bags and the tails in our DLG F3K Tail Bags for greater protection. No build manual is available but there is some useful info in this RCGroups Smile thread, and some construction photos on Facebook here.

Although the completeness of the kit and the quality of construction and detail design is excellent there are a few small paint and surface finish blemishes, hence the reduced price. But do not let that put you off, these are still beautiful models and a fantastic bargain.

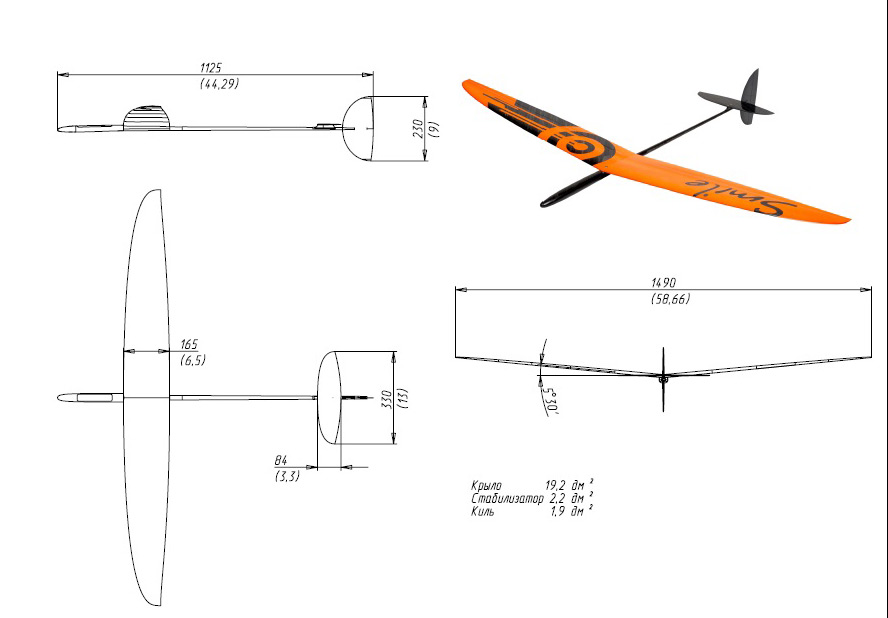

Smile DLG Specifications
Wing span	1.5 m	59 in
Wing area	19.2 dm2	298 sq in
Length	112 cm	44.1 in
Flying weight from	235 g	8.3 oz
Wing loading	12.3 g/dm	4.0 oz/sq ft
Aspect ratio	11.6
Wing airfoil	Proprietary
Dihedral angle	5.5º
Centre of Gravity	73-78 mm from wing leading edge
Controls	Rudder, elevator, ailerons

Smile DLG Typical Weights
Fuselage	32.0 g	1.1 oz
Wings	109.0 g	3.8 oz
Fin	6.6 g	0.2 oz
Tailplane	7.2 g	0.3 oz
Accessories	16.5 g	0.6 oz
Total structure	171.3 g	6.0 oz
Glue etc	5.0 g	0.2 oz
Receiver	5.0 g	0.2 oz
Tail servos	16.0 g	0.6 oz
Wing servos	16.0 g	0.6 oz
Battery	22.0 g	0.8 oz
Flying weight from	235.3 g	8.3 oz

Note the weights above are not 100% accurate - the current batch of models weigh more.

Smile Control Throws & Mixes
Rudder	15 mm each way
Elevator	7 mm up / 7 mm down
Ailerons	10 mm up / 8 mm down
Recommended snap-flap (elevator->camber) mix.
Full up elevator gives 5mm increased flaperon camber
Recommended flaperon settings. Down=Flap TE down.
Launch preset	1 mm down
Speed	1 mm up (small ail>rud mix)
Cruise	0 mm (a little more ail>rud mix)
Slow cruise and active thermal	1 mm down (more ail>rud mix)
Minimum sink	3 mm to 4 mm down (Slow cruise + slider camber)
Landing mode	as much down as possible

Recommended RC
All servos	KST X06N, KST X08N, MKS DS65K, MKS DS75K-N, MKS HV75K-N, MKS DS6100, MKS HV6100, Blue Bird BMS-126WV
Receiver	4/5 channel rx to match your transmitter, eg FrSky X4R, Spectrum AR6610T, Lemon LM0034, Futaba 6008HS*, Futaba R6106HFC *case removed
Power	1S 500-700 mAh, Radient 1S 700 mAh, HyperLiPo 2S 300 mAh LiPo
